Mechanical sealsMechanical seals
Operating temperature-20°C + 150°C
Analogue forJohn Crane 2100K, Flowserve 142, AESSEAL B092U, Sterling 542, Vulcan 142, Lidering M212.K12
Height of transport packing, cm10
Shaft diameter28
Seal typeR-2100K
All specifications
Склад: In stock
Артикул: 13668_28__CAR/SIC__EPDM__316
$68.32
-+Купить
  • Overview
  • Characteristics
  • Reviews0
BTS Engineering

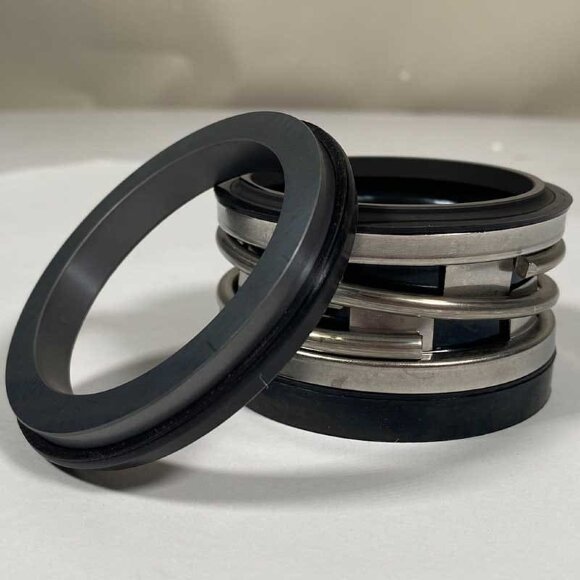

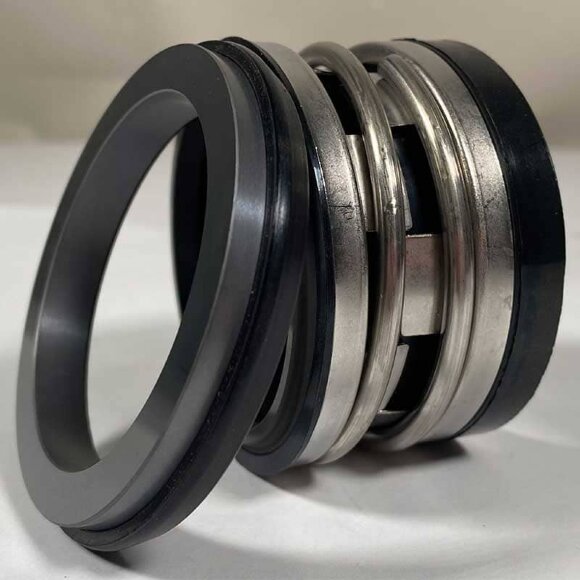

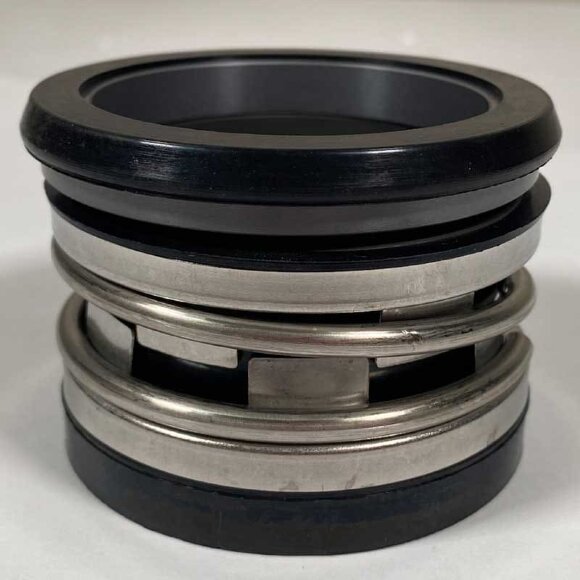

Mechanical seal R-2100K - a compact modular mechanical seal with a central spring and elastomer bellows, for optimal performance and operation of equipment in any condition. It has identical dimensions with R-2100S, but with elongated cylindrical portion of the bellows for installation length. It is used at temperatures ranging from -40 to + 120°C, a pressure of 1 to 2 MPa and the rotation speed to 15 m/sec. Used in compressors, centrifugal, rotary pump, type: Gorman-Rupp, Ebara (3M), WILO, CP, CUP, CP, K, KM, KML, CP, X, AX, CS, CM. Analogues of mechanical seals: John Crane in 2100, 2100S, 2100K, AESSEAL B092U / B052, Flowserve Pac-Seal 140/142/143, ANGA A4 / A41, Vulcan Type 14/142/143, Sterling 540/542/543. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Operating temperature-20°C + 150°C
Analogue forJohn Crane 2100K, Flowserve 142, AESSEAL B092U, Sterling 542, Vulcan 142, Lidering M212.K12
Height of transport packing, cm10
Shaft diameter28
Seal typeR-2100K
ApplicationKM, KOLMEKS, НЦ
Rotation velocity15 m/s
Rubber typeEPDM
ProducerBTS Engineering
Material of metal part316
Length of transport packing, cm8
Stationary and rotating faceCAR/SIC
Width of transport packing, cm8
Pressure1.2 MPa
Gross weight, kg0.25

Mechanical Seal R-2100К 28, CAR/SIC, EPDM, 316 reviews
