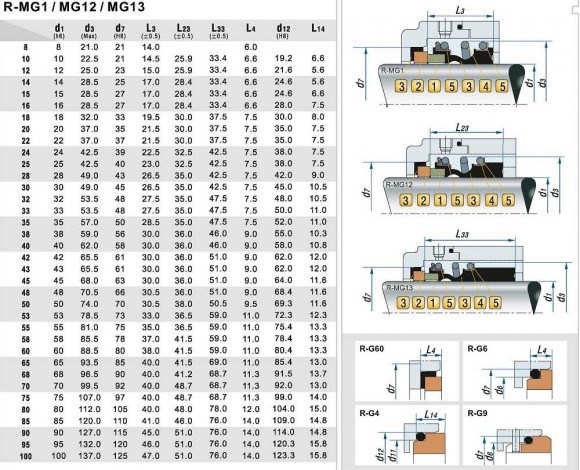

Mechanical seal R-MG1 38, SIC/SIC, VITON, 304, G60

ProducerBTS Engineering
Shaft diameter38
Rubber typeVITON
Material of metal part304
Stationary and rotating faceSIC/SIC
All specifications
Ukraine: In stockPoland: Pre-order onlyGermany: Pre-order only
Vendor code: 13936_38__SIC/SIC__VITON__304__G60
$79.83netto
-+Buy

Overview

BTS Engineering
Single End seal MG1, with an elastomeric bellows, unbalanced, with a central spring, independent of the direction of rotation of the shaft. Used in centrifugal pumps, mixers and other equipment, it is particularly recommended for the media, which contain solids (e.g., sewage). Apply at temperatures from -20 to + 140°C, pressures up to 1.6 MPa and the rotation speed to 10 m/sec. Possible use in pumps Alfa Laval, Ebara (3M, DWO), Lowara, KSB (Etanorm, Etachrom), WILO (MVI, MHI, IPL / DPL), Grundfos (CDM), Saer (IP), Calpeda (GM, MXS) , Gnome, KM, DAB, Johnson Pump, Foras, Zenit (DTRT) and others. Analog mechanical seals: Burgmann MG1, AESSEAL B09U / B02, Flowserve Pac-Seal 190, ROTEN L3, Vulcan Type 19, ANGA A1, Sterling SMG1, Sealant 212.N2. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Characteristics

ProducerBTS Engineering
Shaft diameter38
Rubber typeVITON
Material of metal part304
Stationary and rotating faceSIC/SIC
Rotation velocity10 m/s
Pressure1,6 mPa
Type of conta-ringG60
Operating temperature-20°C + 140°C
Seal typeR-MG1
ApplicationEMAUX, Alfa Laval, ALLWEILER, CNP, CRI-MAN S.p.A., DAB, DWO, Ebara, ERDURO, Evroaqua, Foras, Grundfos, GUCM, Hidrostal, Hydro-Vacuum SA, Inoxpa, IRG, Johnson pump, KM, KML, KSB, Mas Daf, Nocchi, Pedrollo, Pentax, SAER, Salmson, SD, Seepex, Speroni, SPOMASZ ZAMOŚĆ SA, Standart, Sulzer ABS, Svanehoj, TAJFUN, WILO, Yulo, Zenit
Analogue forHermetyka M212.N2, AESSEAL B02, AESSEAL B09U, Anga A1, Burgmann MG1, DIMER TCP.1-60, Flowserve 190, Latty T700, LIDERING LRB17, Roten L3, Sterling SMG1, US SEAL VGMC-1, Vulcan 19
Length of transport packing, cm8
Width of transport packing, cm8
Height of transport packing, cm10
Gross weight, kg0.25

Video Mechanical seal R-MG1 38, SIC/SIC, VITON, 304, G60

How to properly measure a mechanical seal
