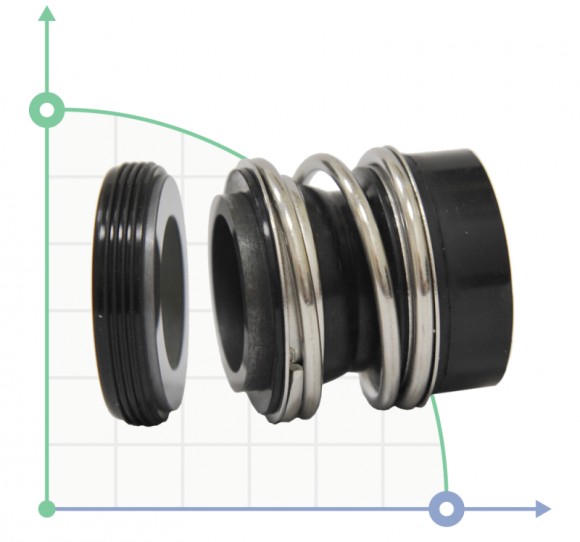

Mechanical shaft seal R-MG12 35, SIC/SIC, VITON, 304, G60

ProducerBTS Engineering
Shaft diameter35
Rubber typeVITON
Material of metal part304
Stationary and rotating faceSIC/SIC
All specifications
Ukraine: In stockPoland: Pre-order onlyGermany: Pre-order only
Vendor code: 13949_35__SIC/SIC__VITON__304__G60
$73.17netto
-+Buy

Overview

BTS Engineering
Single mechanical seal MG12, with an elastomeric bellows, unbalanced, with a central spring, independent of the direction of rotation of the shaft. Used in centrifugal pumps, mixers and other equipment, it is particularly recommended for the media, which contain solids (e.g., sewage). Apply at temperatures from -20 to + 140°C, pressures up to 1.6 MPa and the rotation speed to 10 m/sec. Possible use in pumps Alfa Laval, Ebara, AQUATICA (775,335, 353, 536, 363, 373), Lowara, KSB (Etanorm, Etachrom), WILO (MVI, MHI, IPL / DPL), Grundfos (CDM), Saer (IP ), Calpeda (GM, MXS), GNOM, KM, DAB, Johnson Pump, Foras, INOXPA, PACKO and others. articles: 4027301 Wilo - MG12-14 G6 2131891, 2052336, 2131895 Wilo - MG12-55 G60 2026903, 2064432, 2104407 Wilo - MG12-32 G60 2026902, 2064431, 2104402 Wilo - MG12-24 G60 2026901, 2064430, 2037438 WIlo - MG12-18 G60 2056452, 2064435 Wilo - MG12-80 G60 4027348, 4027347 Wilo - MG12-14 G60 Analog mechanical seals: Burgmann MG12, AESSEAL B092U / B012, Flowserve Pac-Seal 192, ROTEN L3K, Vulcan Type 192, ANGA A1G, Sterling SMG12, Sealant M212.N12. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Characteristics

ProducerBTS Engineering
Shaft diameter35
Rubber typeVITON
Material of metal part304
Stationary and rotating faceSIC/SIC
Rotation velocity10 m/s
Pressure1,6 mPa
Type of conta-ringG60
Operating temperature-20°C + 140°C

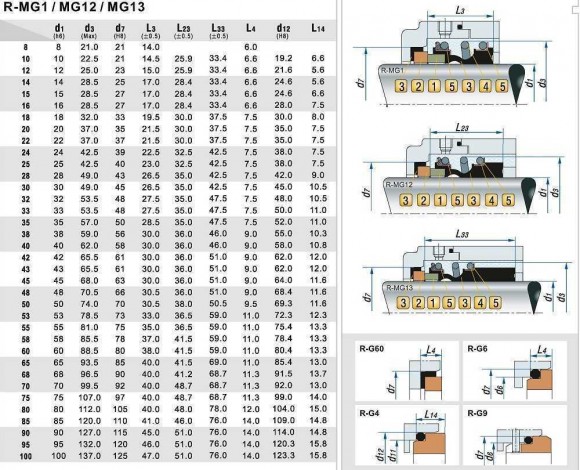

Seal typeR-MG12
ApplicationALLWEILER, DAB, DESMI, DP Pumps, Ebara, FABBRICA ITALIANA POMPE SpA, Grundfos, Hydro-Vacuum SA, IMP Pumps, Inoxpa, Johnson pump, KOLMEKS, KSB, Leroy Somer, LFP (LESZCZYŃSKA FABRYKA POMP), LOWARA, Nocchi, Packo, SAER, Speck pumpen (Badu), Sterling (SIHI), Stork, Tecnicapompe, WILO, Zenit, Gnom
Analogue forHermetica М212.N12, AESSEAL B012, AESSEAL B092U, Anga A1G, Burgmann MG12, DIMER TCP.12-60, Flowserve 192, Latty T712, LIDERING LRB17KU, Roten L3К, Sterling SMG12, US SEAL VGMC-12, Vulcan 192
Length of transport packing, cm8
Width of transport packing, cm8
Height of transport packing, cm10
Gross weight, kg0.25

Video Mechanical shaft seal R-MG12 35, SIC/SIC, VITON, 304, G60

How to properly measure a mechanical seal
