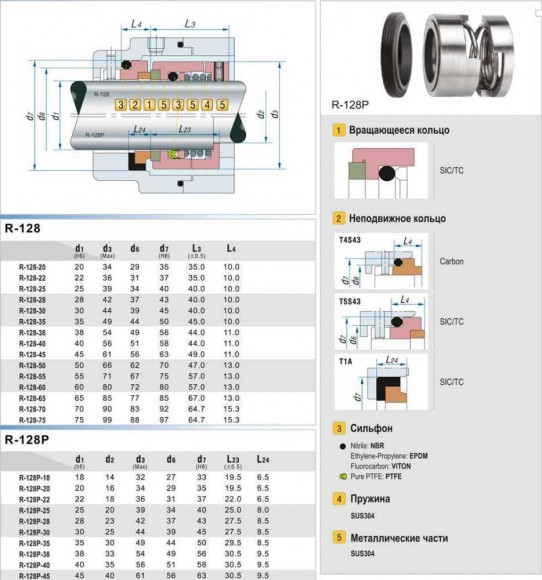

Mechanical seal for pump R-128 75, SIC/SIC, EPDM, 304, T5S43
$-30
Documentation
Download instructions, catalog for Mechanical seal for pump R-128 75, SIC/SIC, EPDM, 304, T5S43
Overview
Mechanical seal R-124 (cuff Pompey) is used at temperatures ranging from-40 to + 120°C, a pressure up to 1, 2 MPa and the rotation speed to 15 m/sec.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Characteristics
| Producer | BTS Engineering |
| Shaft diameter | 75 |
| Rubber type | EPDM |
| Stationary and rotating face | SIC/SIC |
| Material of metal part | 304 |
| Type of conta-ring | T5S43 |
| Pressure | 0,8 MPa |
| Rotation velocity | 10 m/s |
| Operating temperature | -20°C +200°C |
| Seal type | R-128 |
| Gross weight, kg | 0.25 |
| Length of transport packing, cm | 8 |
| Width of transport packing, cm | 8 |
| Height of transport packing, cm | 10 |
How to properly measure a mechanical seal
