Mechanical sealsMechanical seals
Stationary and rotating faceSIC/SIC
Width of transport packing, cm8
Pressure1.0 MPa
Gross weight, kg0.25
Shaft diameter90
All specifications
Склад: Pre-order only
Артикул: 13659_90__SIC/SIC__VITON__304__T5S43
$536.85
-+Купить
  • Overview
  • Characteristics
  • Reviews0
BTS Engineering

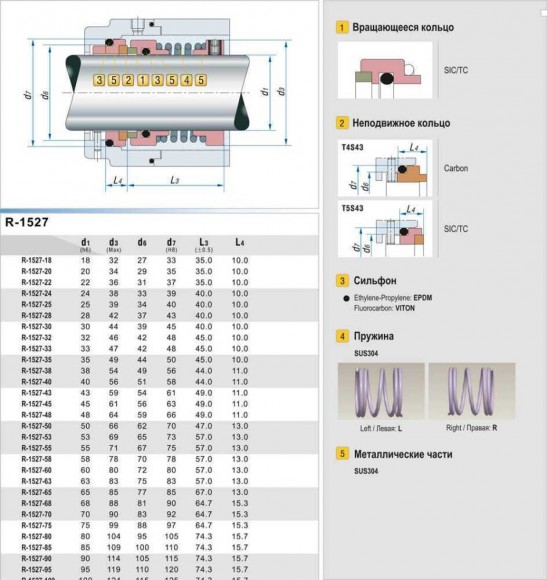

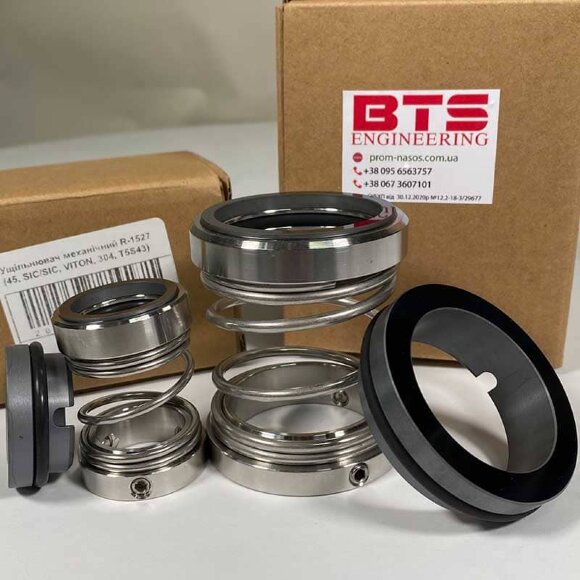

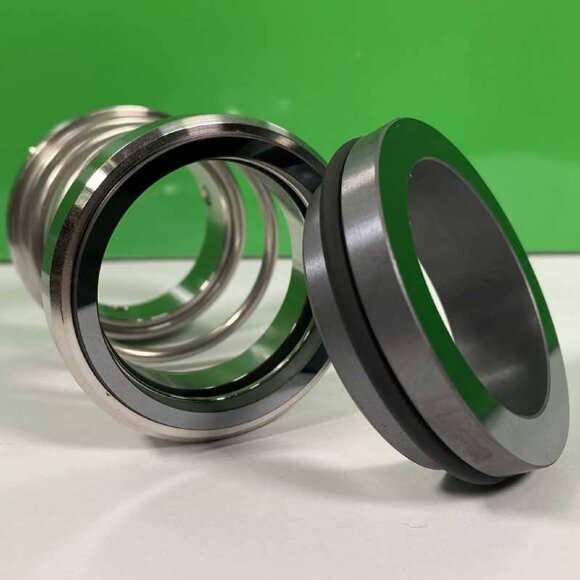

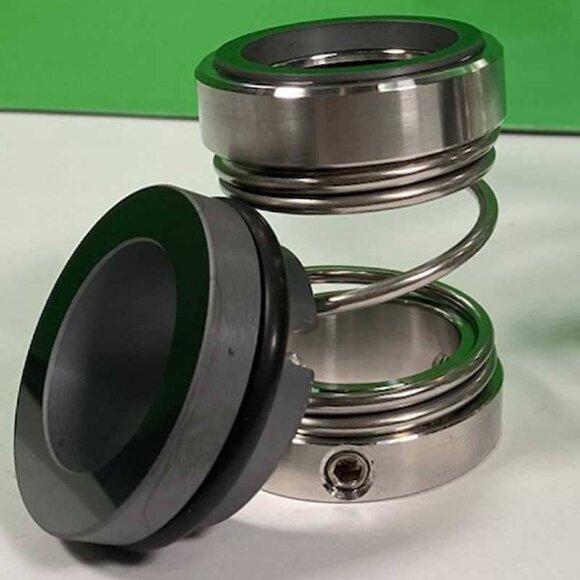

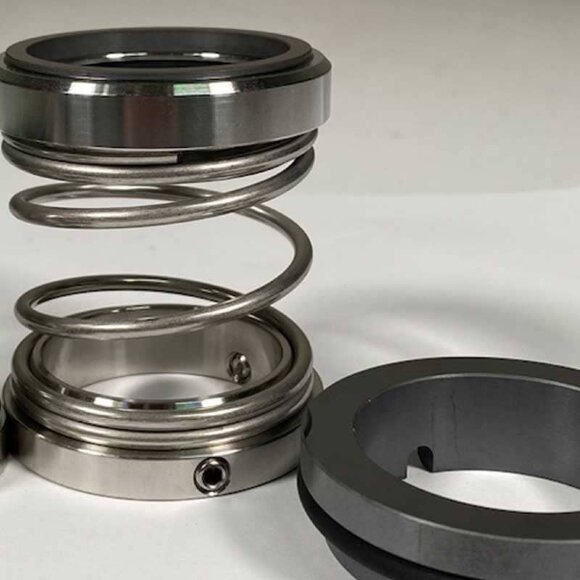

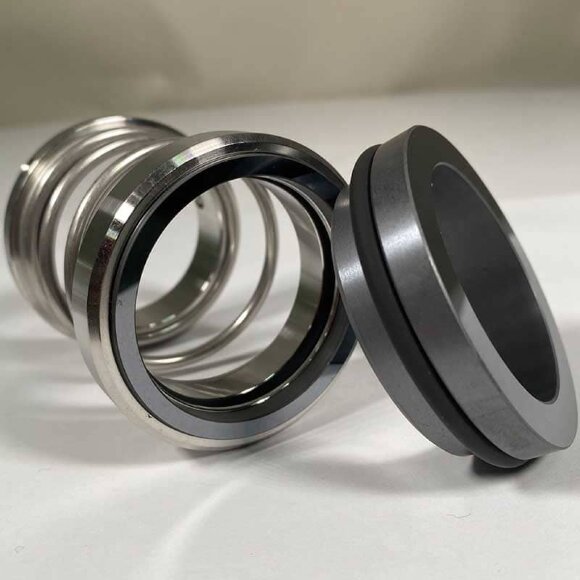

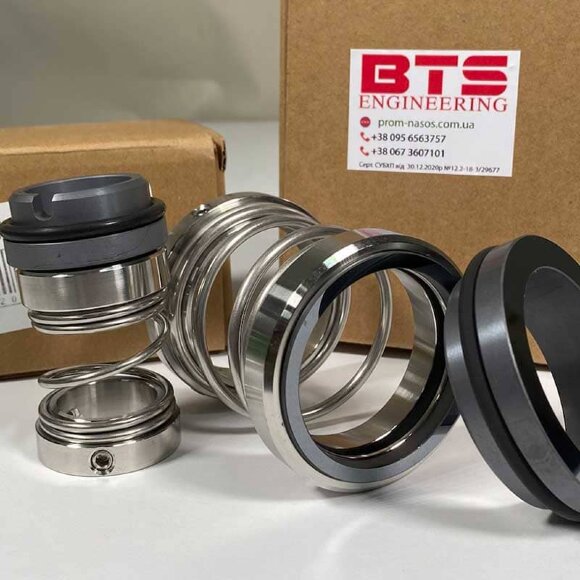

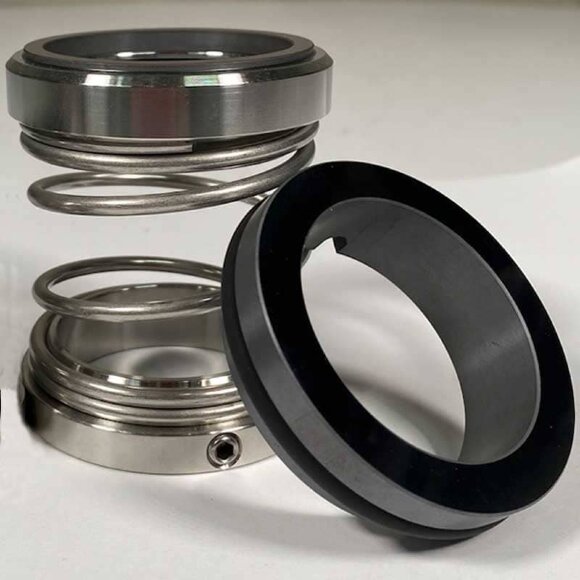

R-1527 The mechanical seal is used at temperatures ranging from-40 to + 120°C, a pressure up to 1 MPa and the rotation speed to 10 m/sec. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Stationary and rotating faceSIC/SIC
Width of transport packing, cm8
Pressure1.0 MPa
Gross weight, kg0.25
Shaft diameter90
Operating temperature-40°C +150°C
ApplicationIH, Inoxpa
Height of transport packing, cm10
Rotation velocity10 m/s
ProducerBTS Engineering
Seal typeR-1527
Rubber typeVITON
Type of conta-ringT5S43
Material of metal part304
Length of transport packing, cm8

Mechanical Seal R-1527 90, SIC/SIC, VITON, 304, T5S43 reviews
