- Mechanical Seal R-4702 14, СAR/CER/SIC/SIC, NBR, 304

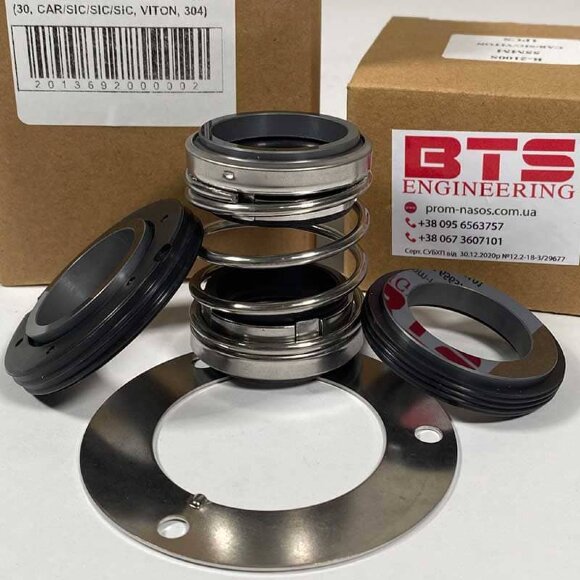

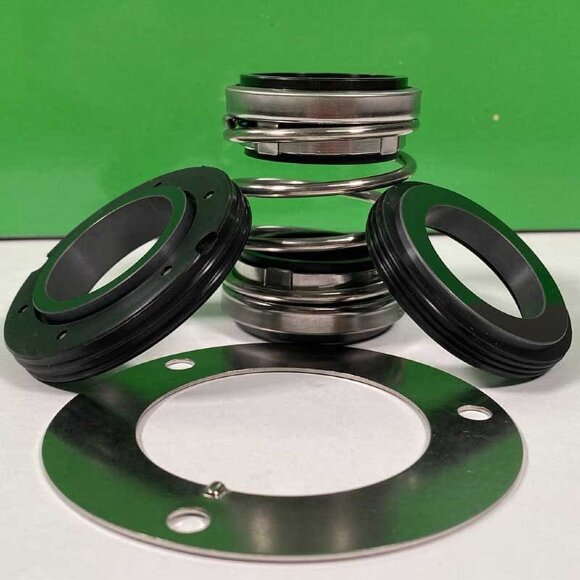

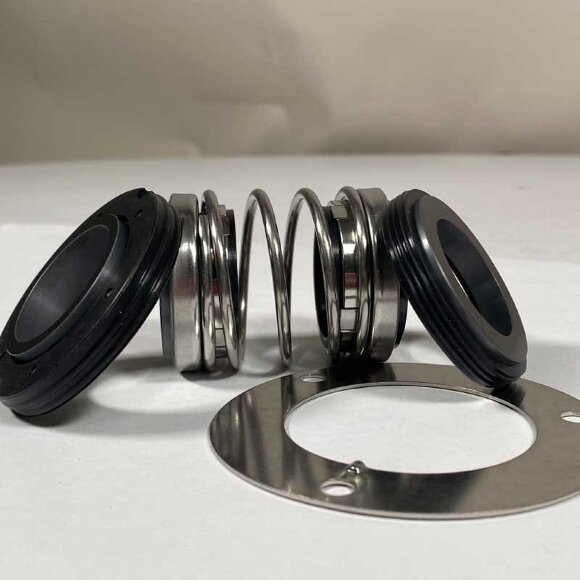

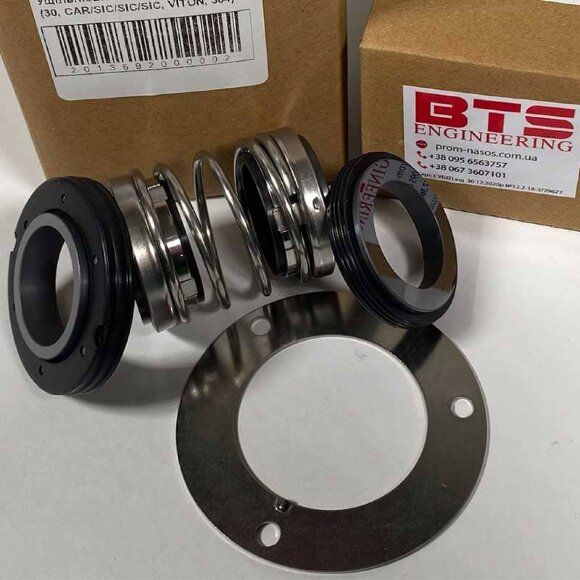

Mechanical Seal R-4702 14, СAR/CER/SIC/SIC, NBR, 304
- Overview
- Characteristics
- Reviews0

Mechanical seal R-4702 - a bilateral mechanical seal which is used at temperatures ranging from -20 to + 70°C. With the pressure to 0 MPa 3 and rotation speed of 3600 rev/min. It has a high degree of interchangeability of parts.
Ideal for water and oil environments, drainage and sewage pumps.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Width of transport packing, cm | 8 |
Pressure | 0,3 MPa |
Gross weight, kg | 0.25 |
Operating temperature | -20°C +70°C |
Analogue for | Burgmann EA560D |
Height of transport packing, cm | 10 |
Shaft diameter | 14 |
Seal type | R-4702 |
Application | Pedrollo |
Rubber type | NBR |
Producer | BTS Engineering |
Rate of turn, rpm | 3 600 |
Material of metal part | 304 |
Length of transport packing, cm | 8 |
Stationary and rotating face | CAR/CER/SIC/SIC |
