Mechanical seal R-MG1S20 42, CAR/SIC, EPDM, 304, G50

ProducerBTS Engineering
Shaft diameter42
Rubber typeEPDM
Material of metal part304
Stationary and rotating faceCAR/SIC
All specifications
Ukraine: Pre-order onlyPoland: Pre-order onlyGermany: Pre-order only
Vendor code: 13952_42__CAR/SIC__EPDM__304__G50
Specify the price and terms of delivery with the manager

Estimated delivery date: 23.05.2024

$118.42netto
-+Buy

Overview

BTS Engineering

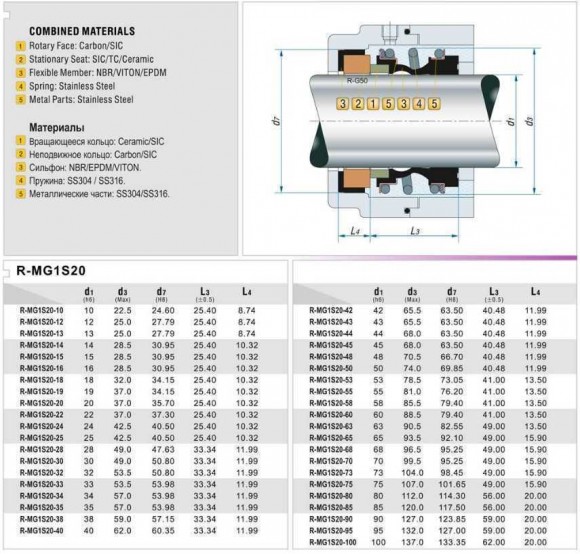

Single End seal R-MG1S20, with an elastomeric bellows, unbalanced, with a central spring, independent of the direction of rotation of the shaft. It is used at temperatures ranging from -20 to + 140°C, pressures up to 1.6 MPa and the rotation speed to 10 m/sec. The size and name for MG1, but with elongated cylindrical portion of the bellows for mounting the length of the counter in conjunction with the G50. Analogue mechanical seals: Burgmann MG1S20. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Characteristics

ProducerBTS Engineering
Shaft diameter42
Rubber typeEPDM
Material of metal part304
Stationary and rotating faceCAR/SIC
Rotation velocity10 m/s
Pressure1,6 mPa
Type of conta-ringG50
Operating temperature-20°C + 140°C
Seal typeR-MG1S20
ApplicationIron Pump, SAER, WILO, CMF
Analogue forAESSEAL BP02U, AESSEAL BP02, Burgmann MG1S20, Flowserve 150, LIDERING LRB17E, Sterling 152, Vulcan 1520
Length of transport packing, cm8
Width of transport packing, cm8
Height of transport packing, cm10
Gross weight, kg0.25

How to properly measure a mechanical seal
