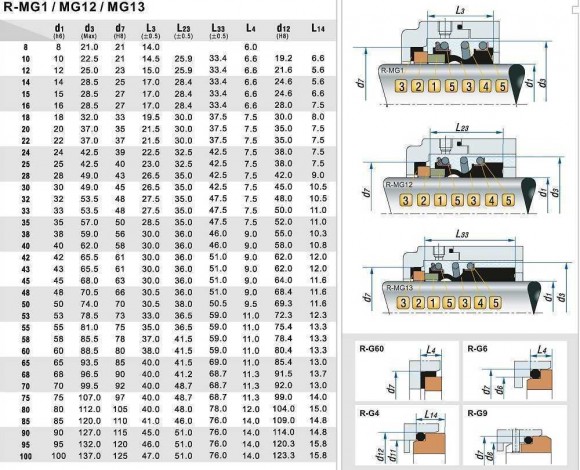

Mechanical seal R-MG13 40, SIC/SIC, EPDM, 304, G60

ProducerBTS Engineering
Shaft diameter40
Rubber typeEPDM
Material of metal part304
Stationary and rotating faceSIC/SIC
All specifications
Ukraine: Pre-order onlyPoland: Pre-order onlyGermany: Pre-order only
Vendor code: 13951_40__SIC/SIC__EPDM__304__G60
Specify the price and terms of delivery with the manager

Estimated delivery date: 14.05.2024

$111.74netto
-+Buy

Overview

BTS Engineering
Single MG13 mechanical seal with an elastomeric bellows, unbalanced, with a central spring, independent of the direction of rotation of the shaft. It is applied at temperatures from -20 to + 140°C, pressures up to 1.6 MPa and the rotation speed to 10 m/sec. It has identical dimensions to the MG1, but with elongated cylindrical portion of the bellows for mounting length. Used in centrifugal pumps, mixers and other equipment. Substances that are pumped - water, milk, juice and others. It is used in these types of pumps Grundfos: R-MG13-28 , G6: - Grundfos NB 32, NB 40, NB 50, NB 65, NB 80, NB 100. Article Grundfos: 96488302, 96548353, 98434904, 98434905, 98670789, 96551963, 97769885, 96548351, 96658825, 96658827, 96658826, 96658828, 98670804, 96658829, 97769886, 96658830. R-MG13-38 , G6: - Grundfos NB 40, NB 50, NB 65, NB 80, NB 100, NB 125, NB 150. Article Grundfos: 96537605, 96548357, 98434906, 98434908, 98670790, 96551928, 97769887, 96548356, 96658836, 96658838, 96658837, 96658839, 98670805, 96658850, 97769888, 96658851. R-MG13-48 , G6: - Grundfos NB 80, NB 100, NB 125, NB 150. Article Grundfos: 96306472, 96658791, 98434909, 98434941, 98670801, 96658794, 97769889, 96658857, 96658860, 96658858, 96658861, 98670806, 96658862, 97769890. R-MG13-55 , G6: - Grundfos NB 150, NB 200, NB 250. Article Grundfos: 96306475, 96658801, 98434943, 98434944, 98670802, 96658804, 97769891, 97769919, 97769921, 97769927, 97769929, 98670807, 97769931, 97769892. R-MG13-60 , G6: - Grundfos NB 125, NB 150, NB 250. Article Grundfos: 96658812, 96658815, 98434945, 98434947, 98670803, 96658818, 97769893, 97769920, 97769922 97769928, 97769930, 98670808, 97769932, 97769894. Also, possible use of pumps: Alfa Laval, Ebara, Lowara, KSB (Etanorm ETN 050-032-160, Etachrom), WILO (MVI, MHI, IPL , DPL), Saer (IP), Calpeda (GM, MXS), GNOM , KM, DAB, Johnson Pump, Foras, INOXPA and others. Analogue mechanical seals: Burgmann MG13, Lidering M212.N13, DIMER TCP.13-60, AESSEAL B093U , B013, Flowserve 193, Roten L3N, Sterling SMG13, Vulcan 193. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Characteristics

ProducerBTS Engineering
Shaft diameter40
Rubber typeEPDM
Material of metal part304
Stationary and rotating faceSIC/SIC
Rotation velocity10 m/s
Pressure1,6 mPa
Type of conta-ringG60
Operating temperature-20°C + 140°C
Seal typeR-MG13
ApplicationDAB, DP Pumps, Grundfos, KSB
Analogue forHermetica М212.N13, AESSEAL B013, AESSEAL B013SS, AESSEAL B093U, Burgmann MG13, DIMER TCP.13-60, Flowserve 193, Latty T713, LIDERING LRB17NU, Roten L3N, Sterling SMG13, Vulcan 193
Length of transport packing, cm8
Width of transport packing, cm8
Height of transport packing, cm10
Gross weight, kg0.25

Video Mechanical seal R-MG13 40, SIC/SIC, EPDM, 304, G60

How to properly measure a mechanical seal
