ProducerBTS Engineering
MaterialAISI 304
Power capacity, kW2,2
Power supply3х380 V, 50 Hz
Number of revolutions, rpm95
All specifications
Ukraine: Pre-order onlyPoland: Pre-order onlyGermany: Pre-order only
Vendor code: 17598
Specify the price and terms of delivery with the manager

Estimated delivery date: 24.05.2024

$1,477.06netto
-+Buy

Documentation

Download instructions, catalog for Paddle stirrer for viscous products MV 500895S

Overview

BTS Engineering

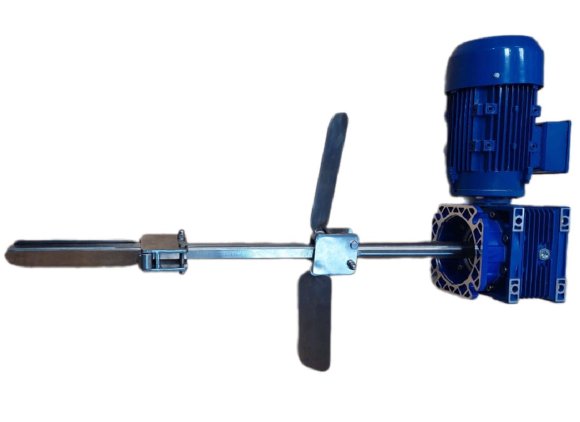

The MV series agitators are designed for mixing high viscosity products (viscosity up to 5000 cps). The active part of the mixer is made of stainless steel. Additionally, the agitator can be equipped with a support frame for installation on a eurocube and a frequency converter for the possibility of optimal selection of the required stirring frequency. The agitator blades are foldable, which allows the agitator to be installed on eurocubes and other containers with neck with a minimum diameter of not more than 150 mm.

Characteristics

ProducerBTS Engineering
MaterialAISI 304
Power capacity, kW2,2
Power supply3х380 V, 50 Hz
Number of revolutions, rpm95
Screw500
Mixer seriesMV
Length, mm800
Applicationsuspension, agitation, milk of lime, dissolution, solutions, reagents and emulsions for the purpose of homogenization, confusion, salt, suspending, suspensions
Analogue forAGF, AQUA, Emec, FWT, Grundfos, Inoxpa, Jesco Pump, Lightnin, ProMinent, SULZER, Tapflo, ЕВРОХИММАШ, Тульские машины, ТЭСМО, Эксиммаш
