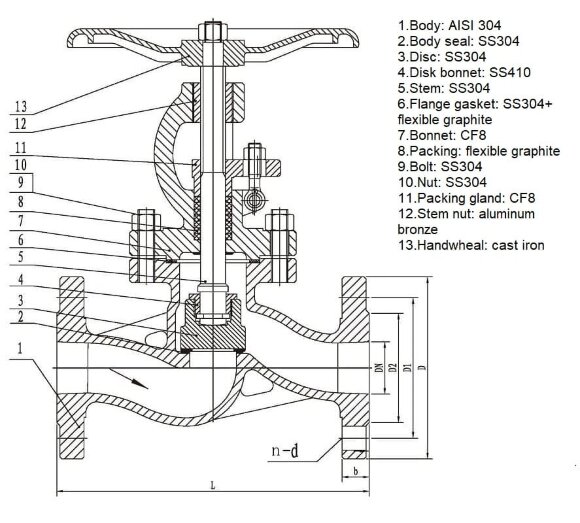

PN16 DN20 tainless steel flanged valve AISI 304, Seal AISI 304
Overview
The flanged Valve is designed for use as shut-off and control valves in water supply, heating and industrial systems of gaseous and liquid non-aggressive media. Installation on the pipeline is carried out in any position (horizontal or vertical), taking into account the flow direction of the working medium. The main features of this Valve are its reliability and modern safe design. The valve passes a full test cycle, which guarantees a high level of quality in accordance with the requirements of the standards.
Characteristics
| Connection diameter, DN | 20 |
| Producer | BTS Engineering |
| Nom.pressure, Mpa | 1,6 |
| Connection type | flanged |
| Operating temperature | ≤200 |
| Housing material | AISI 304 stainless steel |
| Seal material | AISI 304 stainless steel |
| Material of the disk | AISI 304 stainless steel |
| Country of Origin | China |
| Working Environment | water, air, steam, liquids, thick and viscous liquids, non-corrosive environment |
