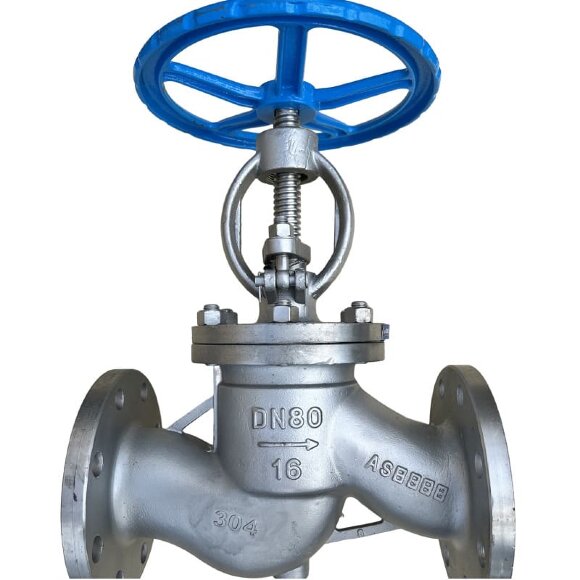

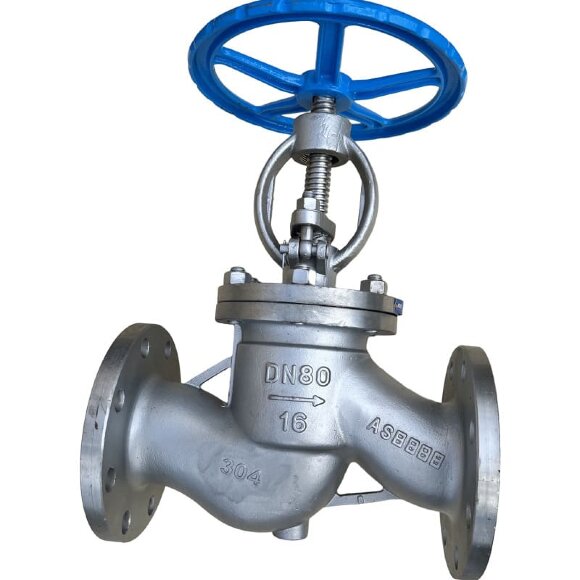

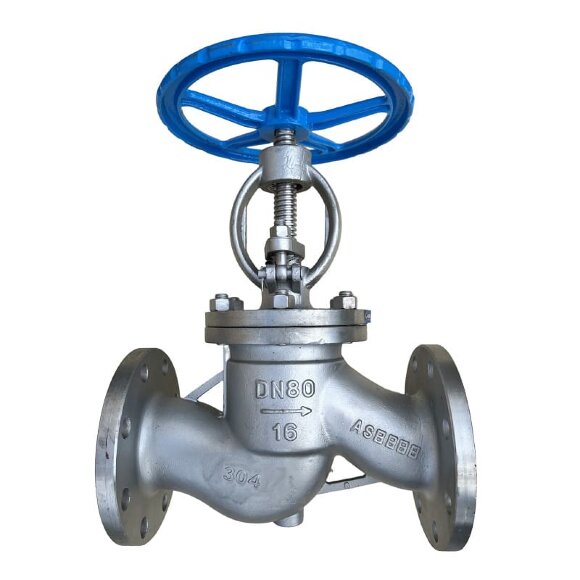

PN16 DN80 Stainless steel flanged valve AISI 304, Seat AISI 304
Documentation
Download instructions, catalog for PN16 DN80 Stainless steel flanged valve AISI 304, Seat AISI 304
Overview
The AISI 304 stainless steel flanged Valve is designed for use as shut-off and control valves in water supply, heating and industrial systems of gaseous and liquid non-aggressive media. Installation on the pipeline is carried out in any position (horizontal or vertical), taking into account the flow direction of the working medium. The main features of this Valve are its reliability and modern safe design. The valve passes a full test cycle, which guarantees a high level of quality in accordance with the requirements of the standards.
Characteristics
| Connection diameter, DN | 80 |
| Producer | BTS Engineering |
| Nom.pressure, Mpa | 1,6 |
| Connection type | flanged |
| Operating temperature | ≤200 |
| Housing material | AISI 304 stainless steel |
| Seal material | AISI 304 stainless steel |
| Country of Origin | China |
| Working Environment | water, air, steam, liquids, thick and viscous liquids, non-corrosive environment |
