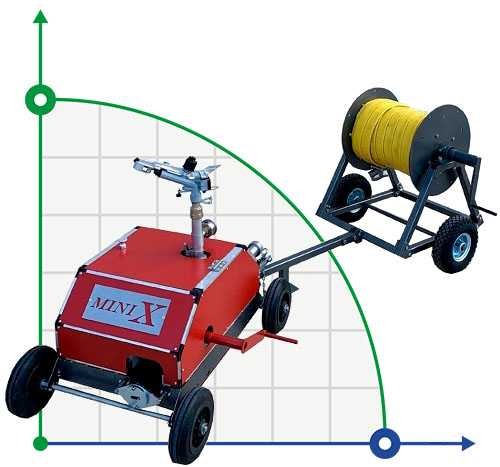

Irrigation Machine Irriforce Minix TD1250-120
Documentation
Download instructions, catalog for Irrigation Machine Irriforce Minix TD1250-120
Overview
Effective irrigation Lenght 120 Meter
Hose Lenght and Type 60 meter - Drag Hose
Hose Inside Diameter 32mm Effective Spray Width 28 Meter - 35 Meter Cable Lenght, diameter 120 Meter - 3 mm
Raingun Type Atom22
Flow Rate 3,5 m3/h - 7 m3/h Recommended Working pressure 3 bar-7 bar Travel Speed 19meter/hour - 100meter/hour
Travel Speed Can be Adjustable by Nozzle&Pressure Manuel Hose Reel System
20' Container Loading Capacity 54 Weight ( kg ) 60 kg + 43 kg ( Hose&hosereel)
Box Dimension 92cm x 60cm x 55cm
Characteristics
| Producer | Yuzuak |
| Max.flow rate, m3/h | 7 |
| Model | Irriforce Minix |
| Cabel length,m | 120 |
| Length of watering, m | 120 |
| Spray width (max), m | 35 |
| Pressure, bar | 7 |
| Country of Origin | Turkey |
| Weight, kg | 103 |
