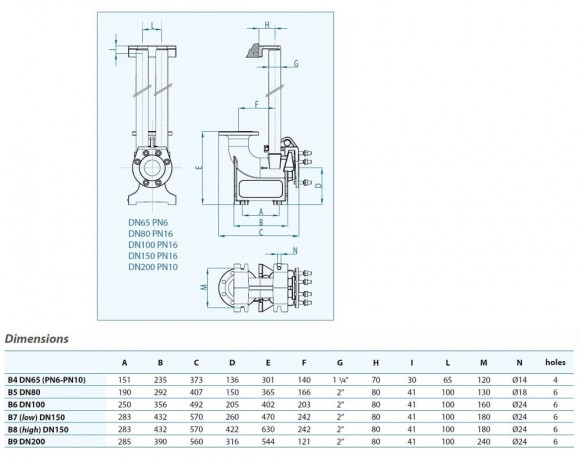

Dreno automatic coupling type B9
Documentation
Download instructions, catalog for Dreno automatic coupling type B9
Overview
Main technical characteristics: flanged; housing made of cast iron GG25; mechanical connection between the connecting leg and the connection support; full free passage; guide rails, connecting support and stainless steel screw / bolt are included in the delivery package; tongs and mounting screws are included in the delivery package.
Characteristics
| Producer | Dreno |
| Material | cast iron |
| Input pipe diameter | DN200 |
| Max.diameter of solid inclusions, mm | 200 |
| Type of spare | coupling |
| Country of Origin | Italy |
