Ball valve PTFE pump MINIBOXER / MICROBOXER
Overview
Ball valve PTFE pump MINIBOXER / MICROBOXER.

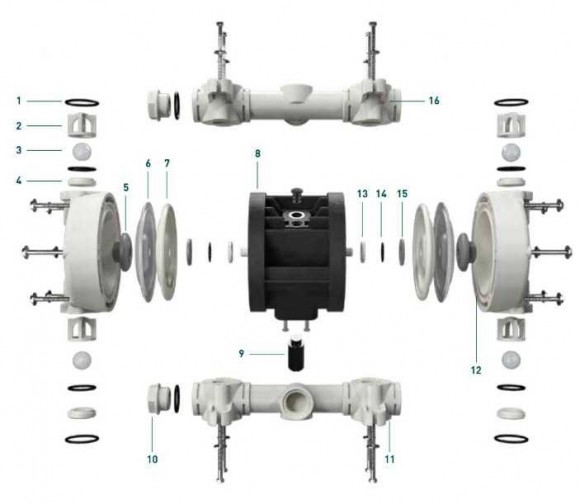

Spare parts for pumps DEBEM:
BOXER, MICROBOXER, FPC 100, MINIBOXER.
1. Seals o-ring - PTFE, EPDM, NBR, VITON
2. The seat of the ball valve - PP, PVDF, AISI 316, ALU, HMWHDPE, PPS-V
3. Balls - PTFE, EPDM. AISI 316, NBR
4. A washer seat - PP, PVDF, AISI 316, ALU, HMWHDPE, PPS-V
5. Cap - PP, PVDF, AISI 316, ALU, HMWHDPE, PPS-V
6. The outer membrane (from the fluid) - PTFE
7. The inner membrane (from the air side) - HYTREL, SANTOPRENE, NBR, EPDM
8. The housing center
9. muffler
10. plug
11. Collector - PP, PVDF, AISI 316, ALU
12. The pump body - PP, PVDF, AISI 316, ALU
13. Spacer
14. Washer
15. plug
16. Collector - PP, PVDF, AISI 316, ALU
Characteristics
| Producer | DEBEM |
| Material | PTFE |
| Country of Origin | Italy |
| Application | IM |
