Upper / lower collector, AL, PHOENIX P160

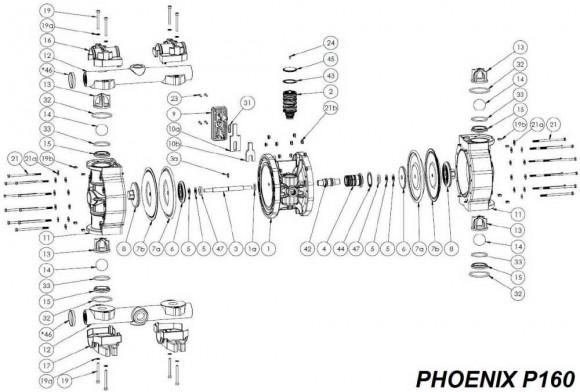

Upper/lower collector of the FLUIMAC PHOENIX P160 pump. Material: AL. ITEM NUMBER: P0160CLR04264AL. Position on the parsing scheme: 12. General scheme of disassembly of the PHOENIX P160 pump: 1 Central unit (new version) 1a O-ring 2 Pneumatic heat exchanger 3 Shaft 3a Shaft sealing ring 4 Intermediate plate with O-ring 5 Disc spring 6 Air side cover 7a Air side membrane 7b Membrane on the liquid side 8 Plug 9 Muffler mesh with O-ring 10a External muffler 10b Internal muffler 11 Pump housing 12 Upper/lower collector 12a Upper collector 12b Lower collector 12a Upper collector clamp 12b Lower collector clamp 13 Guide ball clip 14 Ball 15 Ball seat 16 Collar 17 Stand 19 Screw collector 19a Ring gasket 19b Spanner manifold 21 Screw casing 21a Ring gasket 21b Nut 23 Silencer screw grille 24 Screw of the cover of the pneumatic exchanger 31 Muffler O-ring 32 Upper O-ring 33 Lower O-ring 42 command sleeve with O-ring (new version) 43 Locking ring for pneumatic exchanger 44 Locking ring for pneumatic exchanger 45 Cover of the pneumatic exchanger *46 Reinforcing ring 47 Stroke gasket
