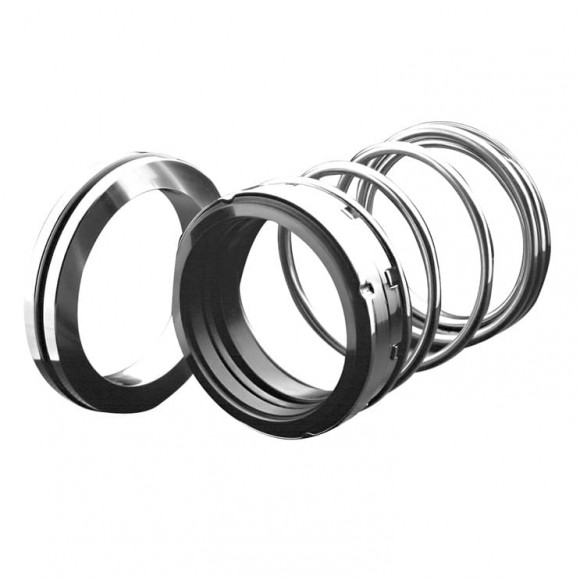

JOHN CRANE 1 mechanical seal
Overview
The John CRANE 1 mechanical mechanical shaft seal is used at temperatures from -40 to + 180°C, with a pressure of up to 1.7 MPA and a rotation speed of up to 13 M/SEC.
It does not depend on the direction of rotation of the shaft.
It has a reliable transmission thanks to a special design that allows you to work in high-pressure conditions.
The R-T1 seal is used in pumps, mixers, air compressors, fans and other equipment. It is often used in the pulp and paper, petrochemical, food, processing, and energy industries.
This seal is widely used in slurry pumps, in particular Mission Magnum & Supreme 2500, MCM250, Halco2500, Double Life250, Mattco, Harrisburg, Cobra, Dragon Derrick premium 250
Analogs: LIDERING LRB00U + PF L50, Burgmann MG901 / D1-G55, AESSEAL P05U, AESSEAL P05T, Vulcan 22, Vulcan A5, Roten 51A, Flowserve 220, Flowserve 51, Sealol 43 CU Long, US SEAL E, BTS Engineering R-T1
Characteristics
| Producer | JOHN CRANE |
| Pressure | 1.7 MPa |
| Rotation velocity | 13 m/s |
| Operating temperature | -40°C +200°C |
| Seal type | R-T1 |
| Country of Origin | USA |
| Application | Cobra, Dragon Derrickk, Halco, Harrisburg, Mattco, MCM, Mission Pump, Tuthill |
| Analogue for | BTS R-T1, AESSEAL P05U, AESSEAL P05T, Burgmann MG901/D1-G55, Flowserve 220, Flowserve 51, LIDERING LRB00U + PF L50, Roten 51A, Sealol 43 CU Long, US SEAL E, Vulcan 22, Vulcan A5 |
| Gross weight, kg | 0.25 |
| Length of transport packing, cm | 8 |
| Width of transport packing, cm | 8 |
| Height of transport packing, cm | 10 |
