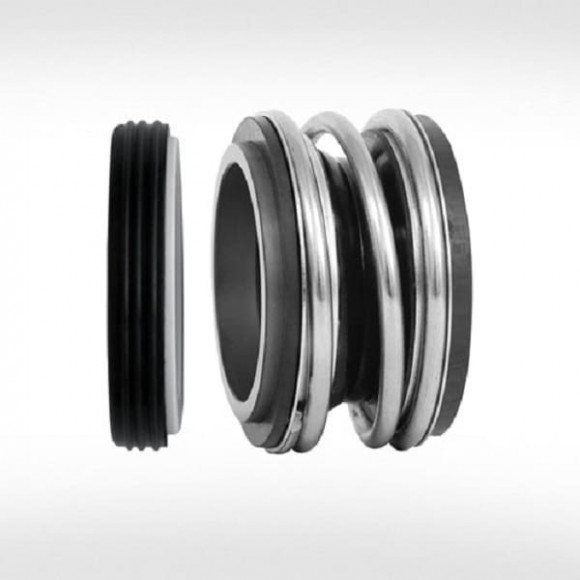

VULCAN 142DIN mechanical seal
Overview
The VULCAN 142din mechanical mechanical seal is a modular type seal with a single central spring and an elastomeric bellows that ensures maximum efficiency and operation of the equipment in all conditions. It has identical dimensions to the VULCAN 14din, but with an extended cylindrical part of the bellows to provide mounting length.
It is used at temperatures from -40 to + 180°C, with a pressure of 1.5 MPA and a rotation speed of up to 15 M/SEC.
It is used in compressors, centrifugal, Rotary pumps, pumps of the following types: Gorman-Rupp, Ebara, WILO, ONC, SNC, ONC, K, KM, KML, ONC, X, Ah, CS, CM.
Analogs: LIDERING LRB25KU, John Crane 2100k, AESSEAL B052, Flowserve 142, Hermetica M212.K12, Sterling 542, BTS Engineering R-2100k
Characteristics
| Producer | VULCAN |
| Pressure | 1,6 mPa |
| Rotation velocity | 15 m/s |
| Operating temperature | -20°C + 150°C |
| Seal type | R-2100K |
| Country of Origin | United Kingdom |
| Application | KM, KOLMEKS, NC |
| Analogue for | Hermetica M212.K12, BTS R-2100K, AESSEAL B052, Flowserve 142, John Crane 2100K, LIDERING LRB25KU, Sterling 542 |
| Gross weight, kg | 0.25 |
| Length of transport packing, cm | 8 |
| Width of transport packing, cm | 8 |
| Height of transport packing, cm | 10 |
