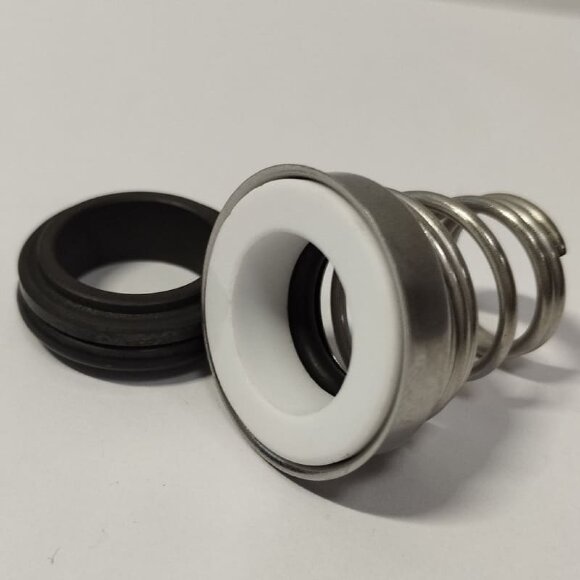

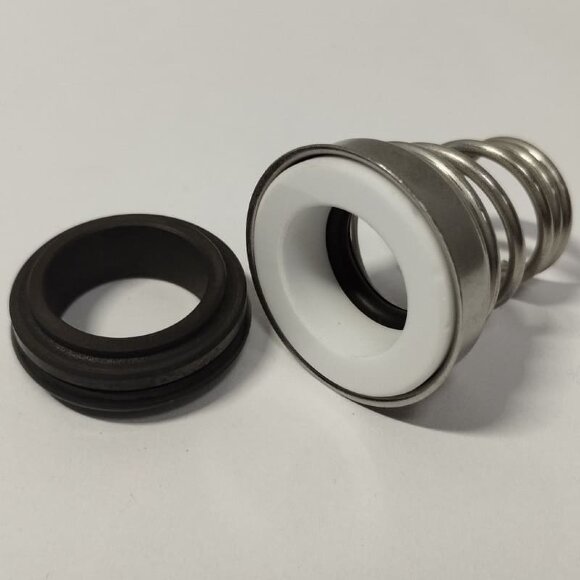

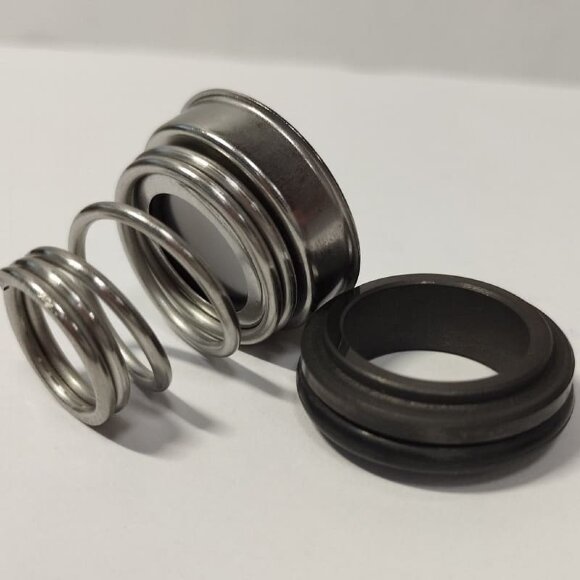

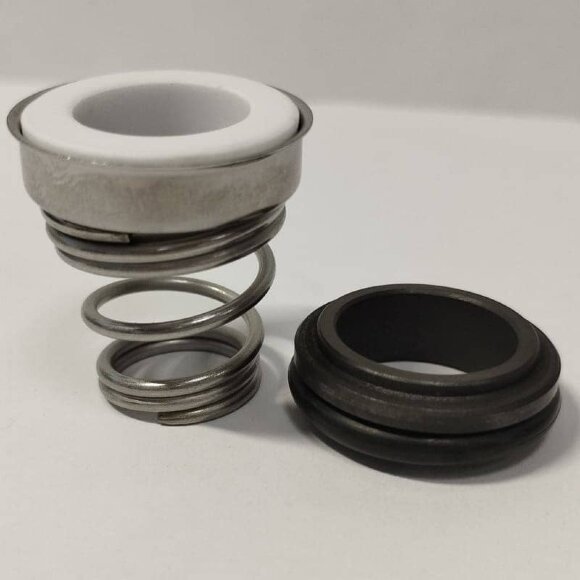

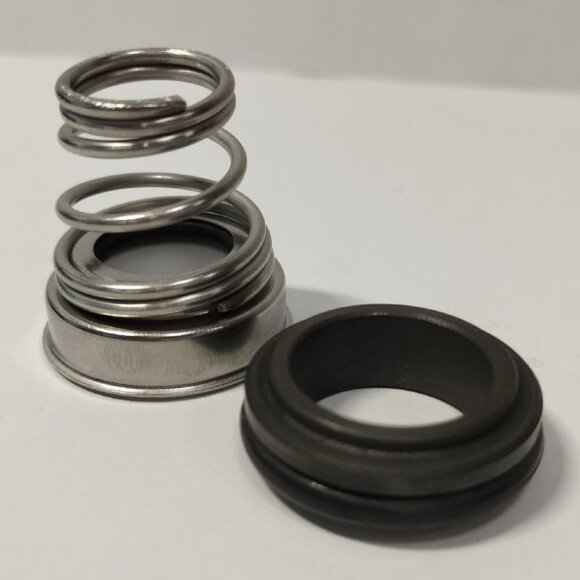

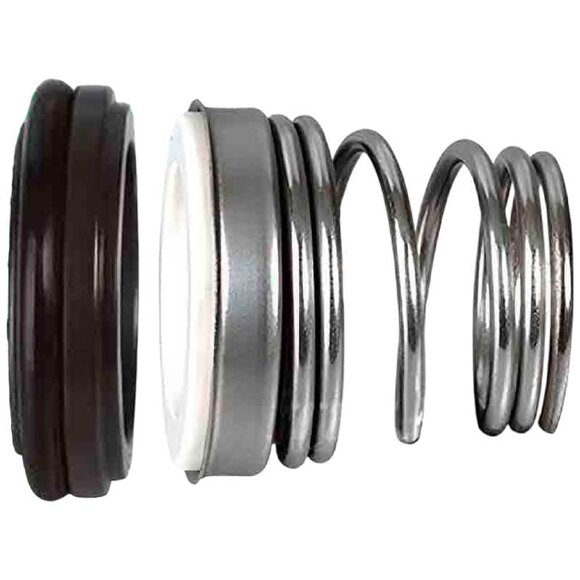

Mechanical seal R-BT-FN 14, CAR/CER, EPDM, 304 for pump shaft CALPEDA, Ebara, Foras
Documentation
Download instructions, catalog for Mechanical seal R-BT-FN 14, CAR/CER, EPDM, 304 for pump shaft CALPEDA, Ebara, Foras
Overview
Single mechanical seal with conical spring and one-way rotation. Used in pumps and circulation pumps. R-BT-FN 14 - mechanical seal for LOWARA HM, CEA, CO pump KL01AE9 - KIT SEAL D14 VBE+OR EPDM HM Mechanical Seal BT-FN/14X22 VB3E2GG WRAS / KL01ADX - KIT SEAL D14 VCE+OR EPDM CEA Mechanical Seal RO3LS/14X22 SR VCEG / KL01ABE - KIT SEAL D14 VBE+OR EPDM CEA / KL01AL1 / KL01AAC / Calpeda R3-X6H62V6 art. 16006020000 / mechanical seal for Pedrollo PK, PQ.
Can be used in pumps Lowara (CEA120), Calpeda (NM, MXH, MPC, GXC / GXV), Ebara (CDX, 2CDX, CDXM), Pedrolo (F) and others. Analogue of mechanical seals: Burgmann BT-FN, Roten 3, Vulcan 13.
We also supply mechanical seals for Wilo, K, KM, X, AX, AXP, AX, Calpeda, DAB, Ebara, Grundfos pumps, for KSB pumps, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for SPERONI pumps, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for Tuchenhagen pumps, ALFA LAVAL, Donjoy, Mission Magnum, etc.
Characteristics

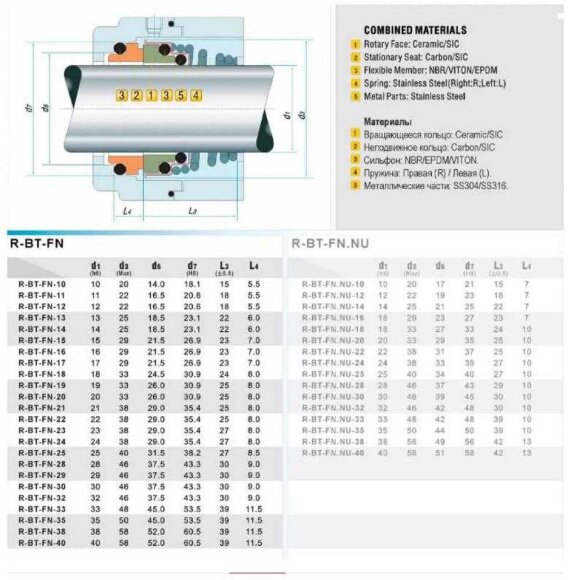

| Outer diameter of the fixed ring, mm | 23,1 |
| Shaft diameter | 14 |
| Producer | BTS Engineering |
| Stationary and rotating face | CAR/CER |
| Material of metal part | AISI 304 stainless steel |
| Pressure | 1.4 MPa |
| Rotation velocity | 15 m/s |
| Operating temperature | -40°C +180°C |
| Seal type | R-BT-FN |
| Rubber type | EPDM |
| Application | ALLWEILER, Calpeda, DAB, DWO, Ebara, Foras, GESPASA, GTP, Inoxpa, KM, LOWARA, Pedrollo, Pentax, SAER, Speck pumpen, Speroni, Sprut, WILO, NMSHG |
| Analogue for | Hermetica М112К.FR, AESSEAL T04, Burgmann BT-FN, DIMER TCO.15-12, Flowserve 43, Latty T901, LIDERING FN, LIDERING LS15, Roplan R62, Roten 3, Sterling SR3, US SEAL VGMB, Vulcan 13 |
| Gross weight, kg | 0.1 |
| Length of transport packing, cm | 5,5 |
| Width of transport packing, cm | 5 |
| Height of transport packing, cm | 5 |
Categories:R-BT-FNCALPEDA - mechanical sealEBARA - mechanical sealHAIGH - mechanical sealINBEAT - mechanical sealJABSCO - mechanical sealLOWARA - mechanical sealMOUVEX - mechanical sealNISSIN - mechanical sealPEDROLLO - mechanical sealPENTAX - mechanical seals for pumpsPUMPEX - mechanical sealMechanical seals for SPERONI pumpsVULCAN - mechanical sealWAUKESHA - mechanical sealWRIGHT FLOW - mechanical seal
Video Mechanical seal R-BT-FN 14, CAR/CER, EPDM, 304 for pump shaft CALPEDA, Ebara, Foras
How to properly measure a mechanical seal
