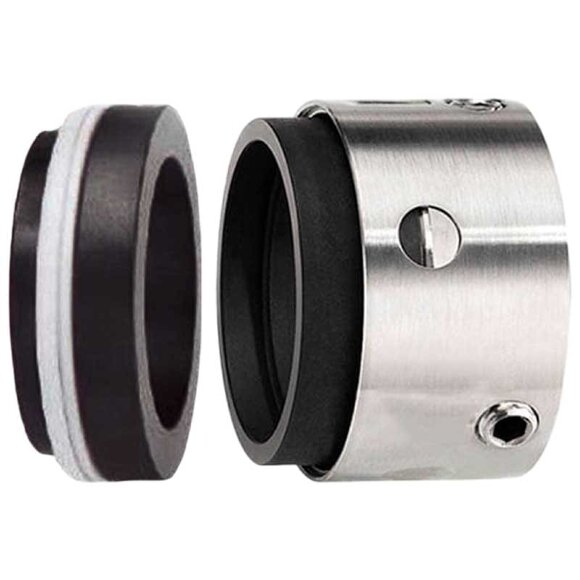

Mechanical seal for chemical pumps R-59U 55, SIC/SIC, PTFE, 304, ВР

ProducerBTS Engineering
Shaft diameter55
Rubber typePTFE
Material of metal part304
Stationary and rotating faceSIC/SIC
All specifications
Ukraine: In stockPoland: Pre-order onlyGermany: Pre-order only
Vendor code: 13700_55__SIC/SIC__PTFE__304__ВР
$324.89netto
-+Buy

Overview

BTS Engineering
Mechanical seal R-59U - unbalanced, multi-spring seal with O-ring. This equipment is used in various industries, including the marine equipment, agitators, mixers, compressors diversity in their application. Is rotated in either direction, the part that rotates with stringing mounted on a rubber bellows, which allows to bring the time and set the seal in the right place using a locking screw. Analogue mechanical seals: John Crane 58U, Burgmann BT-C5.KU, AESSEAL M03S, Vulcan 1659S, Sterling 259S. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Characteristics

ProducerBTS Engineering
Shaft diameter55
Rubber typePTFE
Material of metal part304
Stationary and rotating faceSIC/SIC
Rotation velocity25 m / s
Pressure5.2 MPa
Type of conta-ringВР
Operating temperature-40°C +200°C
Seal typeR-59U
ApplicationThune Eureka
Analogue forAESSEAL M03U, AESSEAL M03, Burgmann BT-C56.KU, Vulcan 1659
Length of transport packing, cm8
Width of transport packing, cm8
Height of transport packing, cm10
Gross weight, kg0.25

Video Mechanical seal for chemical pumps R-59U 55, SIC/SIC, PTFE, 304, ВР

How to properly measure a mechanical seal
