Mechanical seal for chemical pumps R-59U 95, SIC/SIC, PTFE, 316, ВР
Documentation
Download instructions, catalog for Mechanical seal for chemical pumps R-59U 95, SIC/SIC, PTFE, 316, ВР
Overview

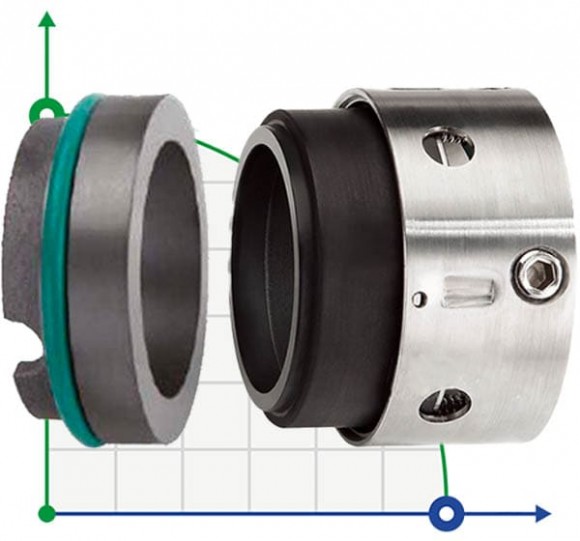

Mechanical seal R-59U - unbalanced, multi-spring seal with O-ring.
This equipment is used in various industries, including the marine equipment, agitators, mixers, compressors diversity in their application.
Is rotated in either direction, the part that rotates with stringing mounted on a rubber bellows, which allows to bring the time and set the seal in the right place using a locking screw.
Analogue mechanical seals: John Crane 58U, Burgmann BT-C5.KU, AESSEAL M03S, Vulcan 1659S, Sterling 259S.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Characteristics
| Producer | BTS Engineering |
| Shaft diameter | 95 |
| Rubber type | PTFE |
| Stationary and rotating face | SIC/SIC |
| Material of metal part | 316 |
| Type of conta-ring | ВР |
| Pressure | 5.2 MPa |
| Rotation velocity | 25 m / s |
| Operating temperature | -40°C +200°C |
| Seal type | R-59U |
| Application | Thune Eureka |
| Analogue for | AESSEAL M03U, AESSEAL M03, Burgmann BT-C56.KU, Vulcan 1659 |
| Gross weight, kg | 0.25 |
| Length of transport packing, cm | 8 |
| Width of transport packing, cm | 8 |
| Height of transport packing, cm | 10 |
Video Mechanical seal for chemical pumps R-59U 95, SIC/SIC, PTFE, 316, ВР
How to properly measure a mechanical seal
