Catalog

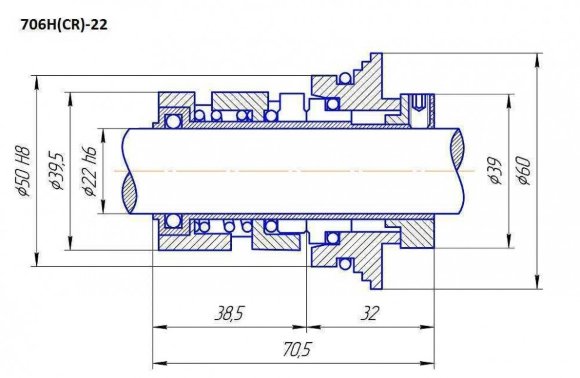

Mechanical seal for Grundfos R-706H (CR) 22, SIC/SIC, VITON, 304
Documentation
Download instructions, catalog for Mechanical seal for Grundfos R-706H (CR) 22, SIC/SIC, VITON, 304
Overview
R-706H (CR) cartridge seals for Grundfos CR, CRE, CRI, CRIE, CRN, CRNE, CRT, CRTE pumps
Material version HQQE HQQV HQQK HQQF HQBE HQBV HQBK HUBE HUBV HUBK HUBF HUUE HUUV HUUV* HUUK HUUF
Артикул 96455086 96455087 96533326 96533327 96455088 96455089 96491375 96455082 96455083 96533322 96533323 96455084 96455085 91043611 96533324 96533325 96511844 96511845 96511846 96511847 96511848 96511849 96511836 96511837 96511838 96511839 96511840 96511841 96511842 96511843 96525458 96525490 96533369 96533412 96525457 96525459 96533365 96533366 96436727 96436728 96533367 96533368.
Cartridge seals for Grundfos CR pumps always in stock:

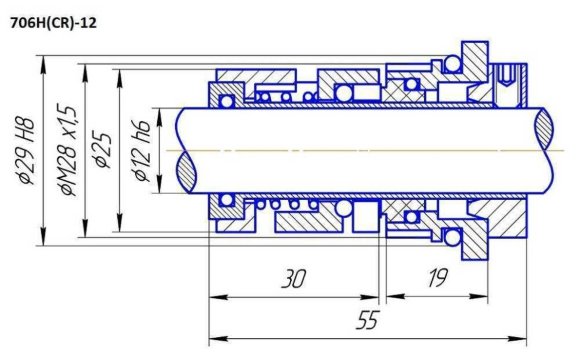

12 mm for CR, CRN 135

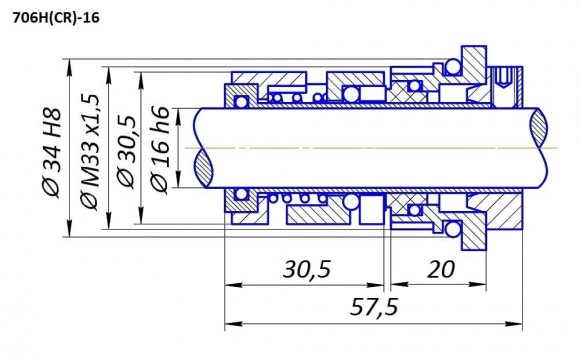

16 mm for CR, CRN 10 15 20
22 mm for CR, CRN 32 45 90 120 150
- CR1, CR3, CR5, CRN1, CRN3, CRN5, CRI1, CRI3, CRI5,
- CRI5, Cr32, Cr45, Cr64, CR90, CRN32, CRN45, CRN64, CRN90 series
- CRN32, CRN45, CRN64, CRN90
Characteristics
| Producer | BTS Engineering |
| Shaft diameter | 22 |
| Rubber type | VITON |
| Stationary and rotating face | SIC/SIC |
| Material of metal part | 304 |
| Seal type | R-706H(CR) |
| Application | CDLF, Grundfos, CNS |
| Analogue for | Hermetica М211K.CR, Grundfos HQQE, Grundfos HQQV, Grundfos HQQK, Grundfos HQBV, Grundfos HUBE, Grundfos HUBV, Grundfos HQQF |
| Gross weight, kg | 0.25 |
| Length of transport packing, cm | 8 |
| Width of transport packing, cm | 8 |
| Height of transport packing, cm | 10 |
Categories:R-706H(CR)GRUNDFOS - mechanical sealLFP Leszno - mechanical seal
Video Mechanical seal for Grundfos R-706H (CR) 22, SIC/SIC, VITON, 304
How to properly measure a mechanical seal
