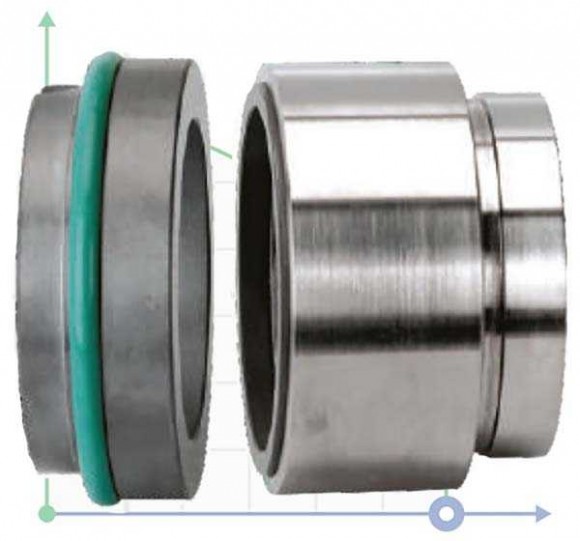

Mechanical seal R-HJ92N 18, CAR/SIC, VITON, 304, G16
Documentation
Download instructions, catalog for Mechanical seal R-HJ92N 18, CAR/SIC, VITON, 304, G16
Overview
- Single seal.
- balanced seal with conical spring.
- Seal with an arbitrary direction of rotation.
A seal for highly viscous media. Springs mechanical seals series R-HJ92N protected from contact with the environment, however, these seals are ideal for highly viscous fluids and fluids with solid particles, for example, sugar or paper industries, or waste water. Strong, reliable, without sticking and clogging of the springs.
It is used in these types of pumps Grundfos:
R-HJ92N-28
- Grundfos NB 32, NB 40, NB 50, NB 65, NB 80, NB 100.
Article Grundfos:
- the counter ring G16: 96548355, 96658831.
- the counter ring G46: 97769895, 97769911, 97769899, 97769907, 97769896, 97769912, 97769900, 97769908.
R-HJ92N-38
- Grundfos NB 40, NB 50, NB 65, NB 80, NB 100, NB 125, NB 150.
Article Grundfos:
- the counter ring G16: 96548359, 96658852.
- the counter ring G46: 97769897, 97769913, 97769901, 97769909, 97769898, 97769914, 97769902, 97769910.
R-HJ92N-48
- Grundfos NB 80, NB 100, NB 125, NB 150.
Article Grundfos:
- the counter ring G16: 96658796, 96658863.
- the counter ring G46: 97685509, 97685516, 97685511, 97685514, 97685510, 97685518, 97685513, 97685515.
R-HJ92N-55
- Grundfos NB 150, NB 200, NB 250.
Article Grundfos:
- the counter ring G16: 96658807, 97536552.
- the counter ring G46: 97685596, 97685604, 97685600, 97685608, 97685597, 97685609, 97685601, 97685605.
R-HJ92N-60
- Grundfos NB 125, NB 150, NB 250.
Article Grundfos:
- the counter ring G16: 96658807, 97536595.
- the counter ring G46: 97685598, 97685610, 97685602, 97685606, 97685599, 97685611, 97685603, 97685607, 97536585.
Analogue mechanical seals: Burgmann HJ92N, Anga US.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Characteristics
| Producer | BTS Engineering |
| Shaft diameter | 18 |
| Rubber type | VITON |
| Stationary and rotating face | CAR/SIC |
| Material of metal part | 304 |
| Type of conta-ring | G16 |
| Pressure | 2.5 MPa |
| Rotation velocity | 25 m / s |
| Operating temperature | -40°C +200°C |
| Seal type | R-HJ92N |
| Application | Flowserve (SIHI), Hydro-Vacuum SA, KSB, Netzsch, Sterling (SIHI), TURO ITALIA SPA |
| Analogue for | Hermetica M251K.NCS, AESSEAL M010, Anga US, Burgmann HJ92N, Latty B23, Roplan 201, Roten EHS |
| Gross weight, kg | 0.25 |
| Length of transport packing, cm | 8 |
| Width of transport packing, cm | 8 |
| Height of transport packing, cm | 10 |
Video Mechanical seal R-HJ92N 18, CAR/SIC, VITON, 304, G16
How to properly measure a mechanical seal
