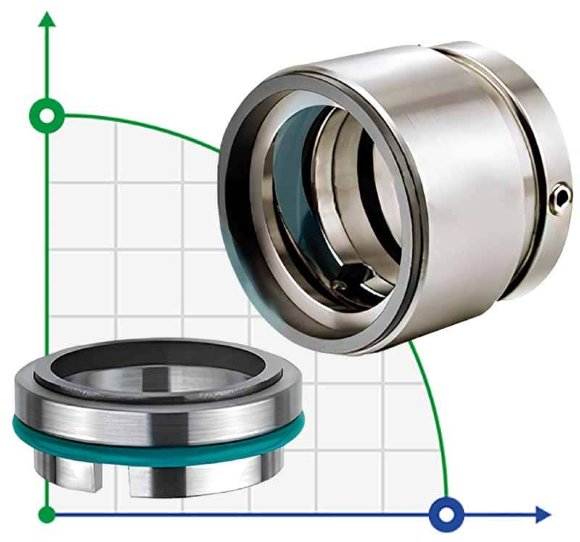

Mechanical seal R-HJ97 45, TC/TC, VITON, 304, G46
Documentation
Download instructions, catalog for Mechanical seal R-HJ97 45, TC/TC, VITON, 304, G46
Overview
Single unloaded seal R-HJ97 with arbitrary shaft rotation direction. The springs of the R-HJ97 series mechanical seals are protected from contact with the medium, making them ideal for highly viscous and particulate media such as those found in the sugar and paper industries or in wastewater. Robust, reliable and free from sticking and clogging of the springs.
Analogue of mechanical seals: Burgmann HJ97.
Characteristics
| Producer | BTS Engineering |
| Shaft diameter | 45 |
| Rubber type | VITON |
| Stationary and rotating face | TC/TC |
| Material of metal part | 304 |
| Type of conta-ring | G46 |
| Pressure | 2.5 MPa |
| Rotation velocity | 25 m / s |
| Operating temperature | -40°C +200°C |
| Seal type | R-HJ97 |
| Gross weight, kg | 0.25 |
| Length of transport packing, cm | 8 |
| Width of transport packing, cm | 8 |
| Height of transport packing, cm | 10 |
