Mechanical seal R-M74 22, SIC/CAR, VITON, 304, G9

ProducerBTS Engineering
Shaft diameter22
Rubber typeVITON
Material of metal part304
Stationary and rotating faceSIC/CAR
All specifications
Ukraine: Pre-order onlyPoland: Pre-order onlyGermany: Pre-order only
Vendor code: 13931_22__SIC/CAR__VITON__304__G9
Specify the price and terms of delivery with the manager

Estimated delivery date: 23.05.2024

$127.71netto
-+Buy

Overview

BTS Engineering

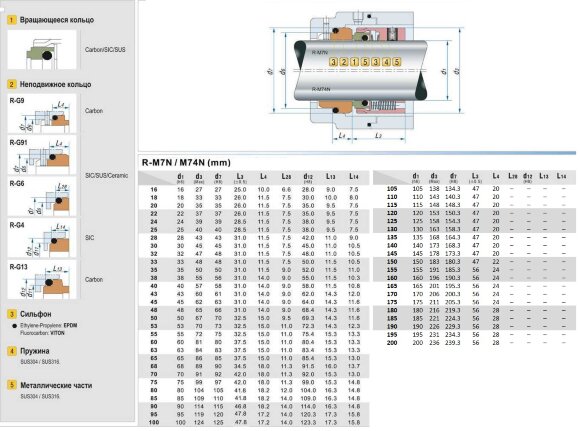

Single seal unbalanced R-M74 has the same dimensions as the R-M7N, but with one difference Ale: R-M74 has MULTI unit. The seal is designed to work with petrochemical products maloagressivnymi chemical compounds and substances that are used in the refrigeration industry. It is used at temperatures from -50 to + 220°C, a pressure up to 2 MPa and 5 rotation speed to 20 m/sec. Analog mechanical seals: Burgmann M74, Anga V, AESSEAL W07DM, Flowserve Europac 600, Sterling 270, Vulcan 1677. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Characteristics

ProducerBTS Engineering
Shaft diameter22
Rubber typeVITON
Material of metal part304
Stationary and rotating faceSIC/CAR
Rotation velocity20 m/s
Pressure1,6 mPa
Type of conta-ringG9
Operating temperature-20°C +200°C
Seal typeR-M74
Analogue forBurgmann M74, LIDERING LMS11
Length of transport packing, cm8
Width of transport packing, cm8
Height of transport packing, cm10
Gross weight, kg0.25

How to properly measure a mechanical seal
