R-T1/R-FBC

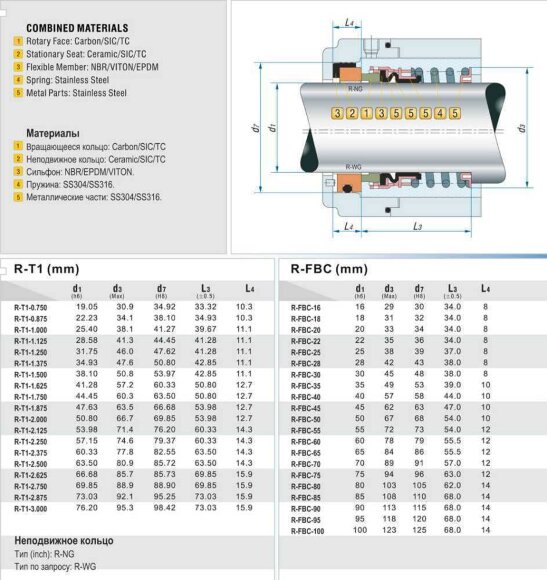

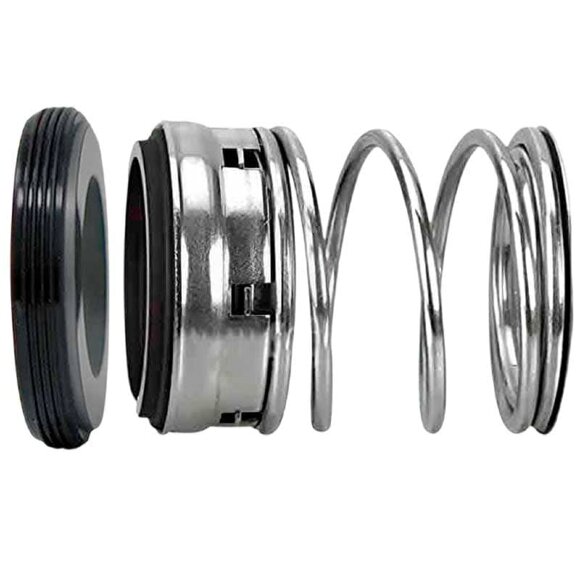

Ordinary pump shaft seal R-FBC 80, SIC/SIC, VITON, 304, NG type VULCAN 22, A5, ROTEN 51A, AESSEAL P05U, P05T, FLOWSERVE 220, 51

Ordinary pump shaft seal R-FBC 80, SIC/SIC, VITON, 304, NG type VULCAN 22, A5, ROTEN 51A, AESSEAL P05U, P05T, FLOWSERVE 220, 51

$-21

Documentation

Download instructions, catalog for Ordinary pump shaft seal R-FBC 80, SIC/SIC, VITON, 304, NG type VULCAN 22, A5, ROTEN 51A, AESSEAL P05U, P05T, FLOWSERVE 220, 51

Overview

The R-FBC mechanical seal is used at temperatures from -40 to + 120°C, with a pressure of up to 1.7 MPa and a rotation speed of up to 13 m/s. It does not depend on the direction of rotation of the shaft. It has a reliable transmission due to its special design, which allows it to work in high pressure conditions. The R-FBC seal is used in pumps, mixers, air compressors, fans and other rotating equipment. It is often used in the pulp and paper industry, petrochemical, food, processing, energy industries. Analogues: John Crane Type1, Vulcan Tupe A5. Mechanical seal for pump Wilo, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, for pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for pumps Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Characteristics

Outer diameter of the fixed ring, mm	105
Type of conta-ring	NG
Shaft diameter	80
Producer	BTS Engineering
Stationary and rotating face	SIC/SIC
Material of metal part	AISI 304 stainless steel
Pressure	1.7 MPa
Rotation velocity	13 m/s
Operating temperature	-40°C +200°C
Seal type	R-FBC
Rubber type	VITON
Application	ROBOT PUMPS
Analogue for	AESSEAL P05T, AESSEAL P05U, Burgmann MG901/D1-G55, Flowserve 220, Flowserve 51, John Crane 1, LIDERING LRB00U + PF L50, Roten 51A, Sealol 43 CU Long, US SEAL E, Vulcan 22, Vulcan A5
Logistics data:
Gross weight, kg	0.75
Length of transport packing, cm	12
Width of transport packing, cm	12
Height of transport packing, cm	12
