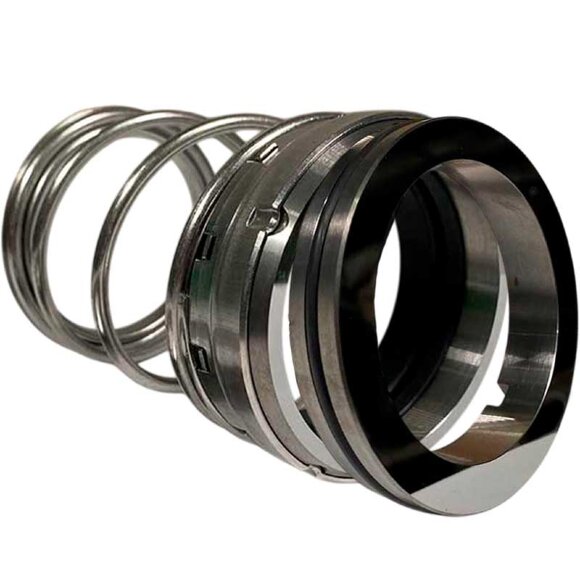

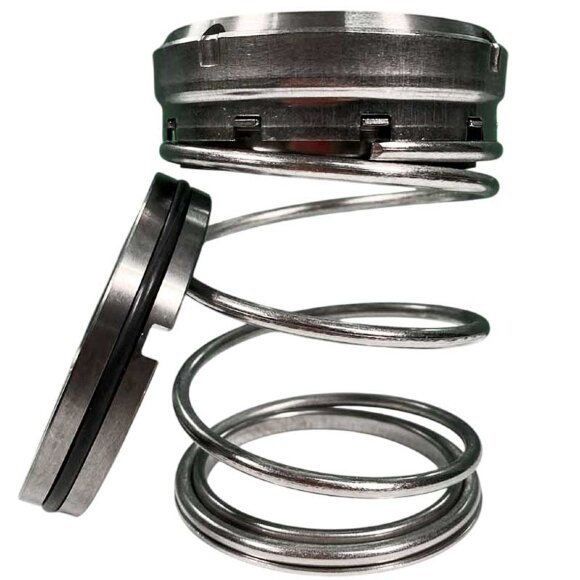

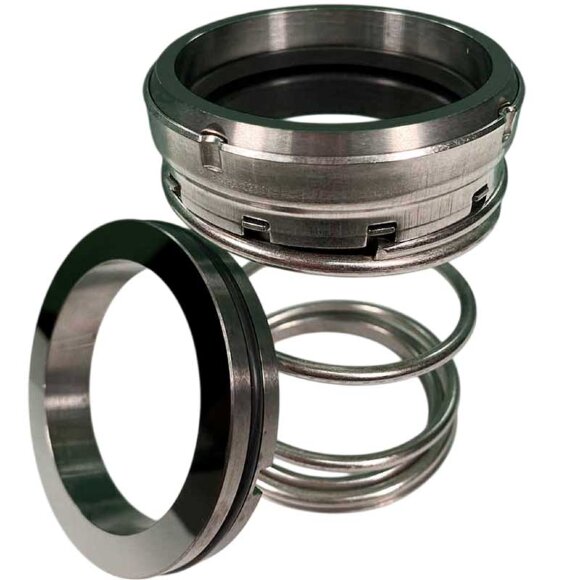

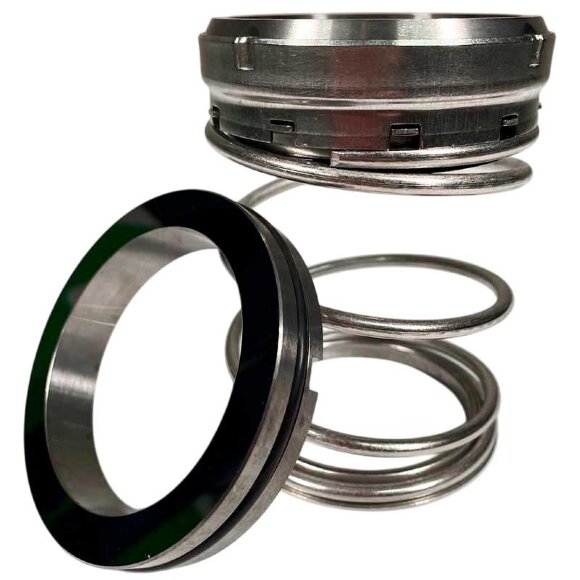

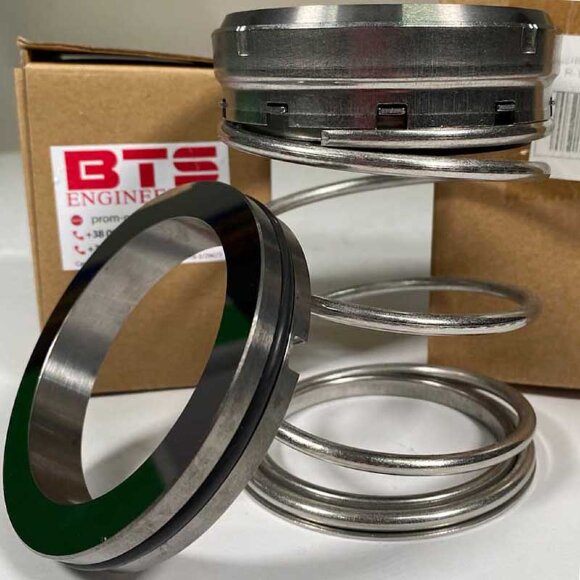

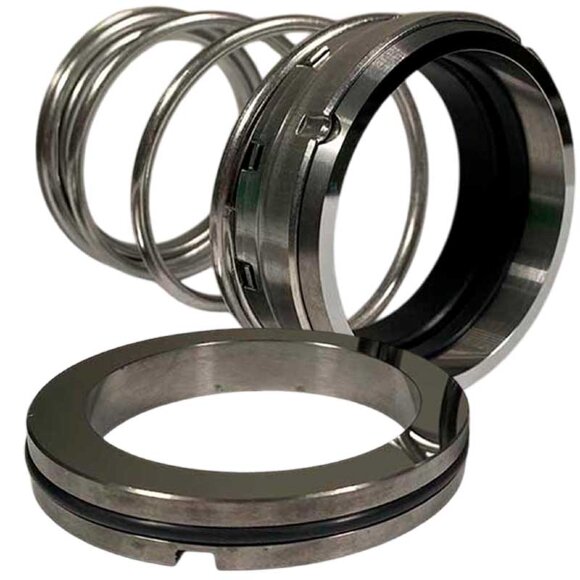

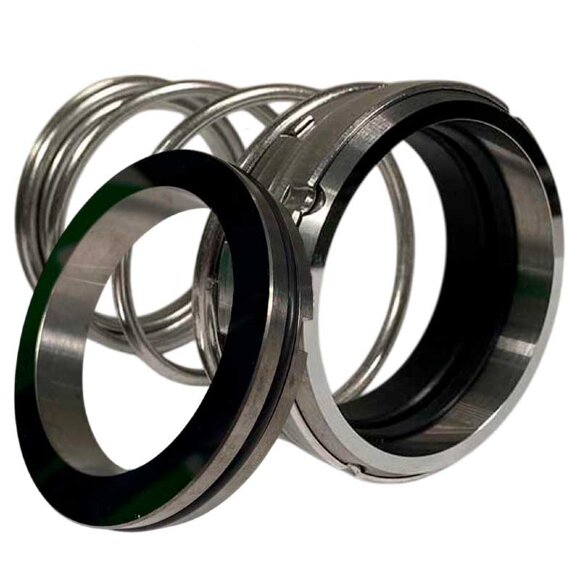

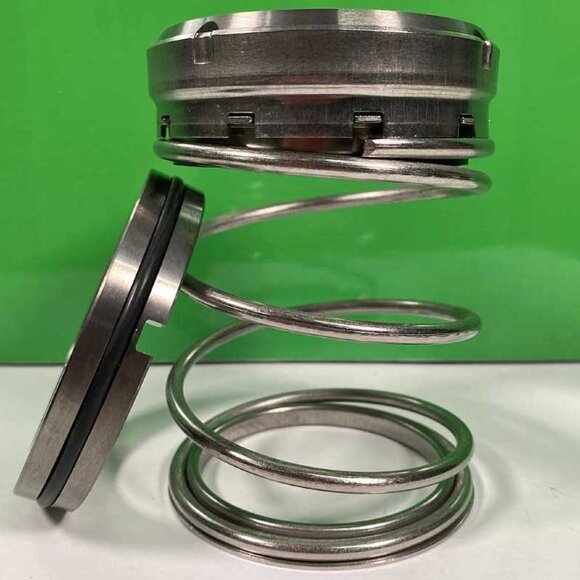

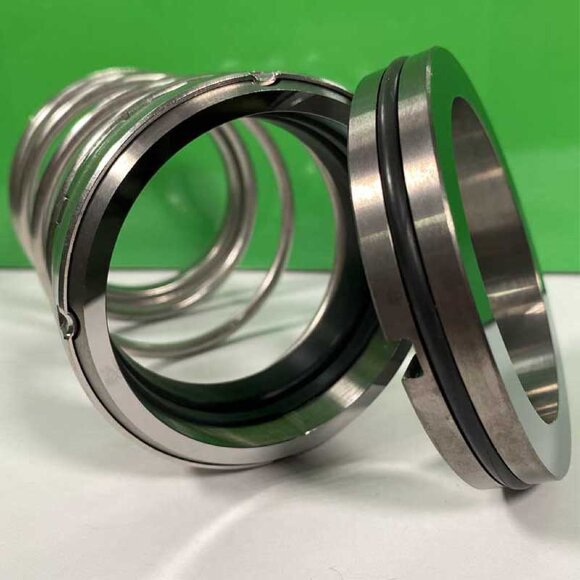

Mechanical seal for pump shaft R-T1 3/8, SIC/SIC, VITON, 304 type AESSEAL P05U, P05T, BURGMANN MG901/D1-G55, FLOWSERVE 220, 51
$-1
Documentation
Download instructions, catalog for Mechanical seal for pump shaft R-T1 3/8, SIC/SIC, VITON, 304 type AESSEAL P05U, P05T, BURGMANN MG901/D1-G55, FLOWSERVE 220, 51
Overview
The R-T1 mechanical shaft seal is used at temperatures from -40 to + 180°C, with a pressure of up to 1.7 MPa and a rotation speed of up to 13 m/s. It does not depend on the direction of rotation of the shaft. It has a reliable transmission due to its special design, which allows it to work in high pressure conditions. The R-T1 seal is used in pumps, mixers, air compressors, fans and other equipment. It is often used in the pulp and paper, petrochemical, food, processing, and energy industries. This seal is widely used in slurry pumps, in particular Mission Magnum & Supreme 2500, MCM250, Halco2500, Double Life250, Mattco, Harrisburg, Cobra, Dragon Derrickk premium 250 Analogues: John Crane Type1, Vulcan Type A5. Mechanical seal for pump Wilo, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, for pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for pumps Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

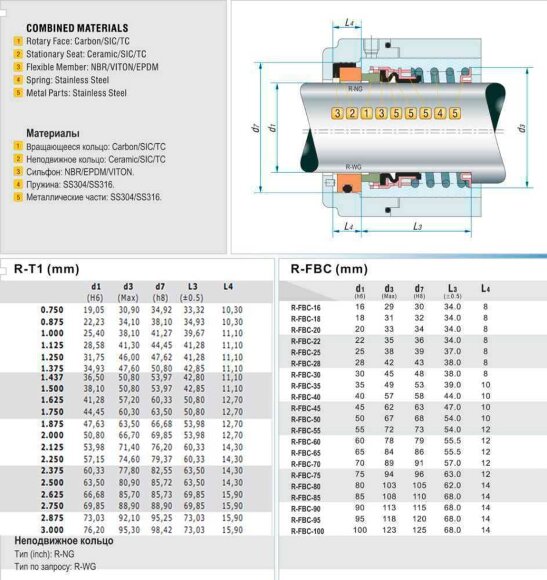

Characteristics
| Shaft diameter | 3/8" |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC |
| Material of metal part | AISI 304 stainless steel |
| Pressure | 1.7 MPa |
| Rotation velocity | 13 m/s |
| Operating temperature | -40°C +200°C |
| Seal type | R-T1 |
| Rubber type | VITON |
| Application | Cobra, Dragon Derrickk, Halco, Harrisburg, Mattco, MCM, Mission Pump, Tuthill |
| Analogue for | AESSEAL P05U, AESSEAL P05T, Burgmann MG901/D1-G55, Flowserve 220, Flowserve 51, John Crane 1, LIDERING LRB00U + PF L50, Roten 51A, Sealol 43 CU Long, US SEAL E, Vulcan 22, Vulcan A5 |
| Gross weight, kg | 0.1 |
| Length of transport packing, cm | 5,5 |
| Width of transport packing, cm | 5 |
| Height of transport packing, cm | 5 |
How to properly measure a mechanical seal
