R-T1/R-FBC

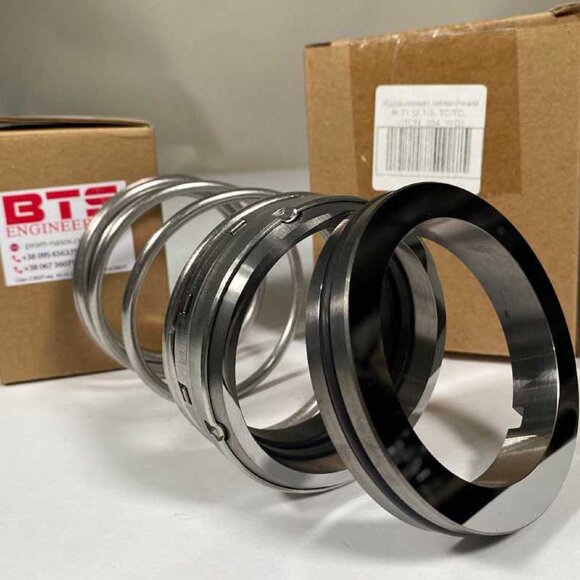

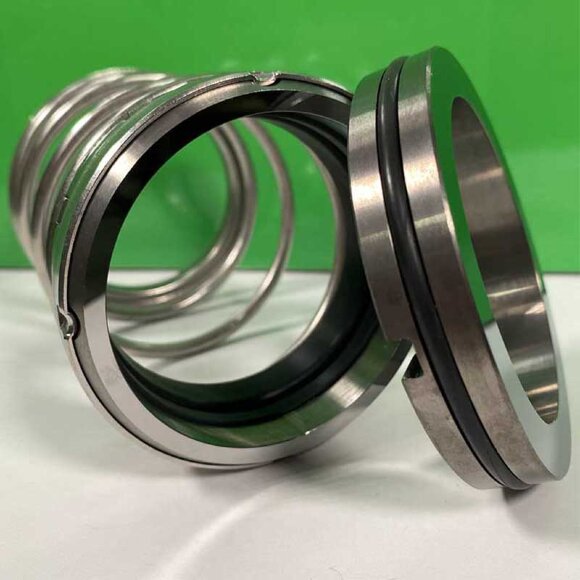

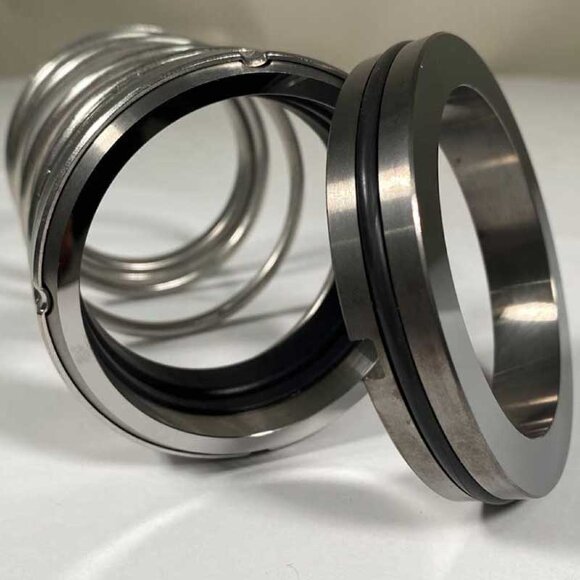

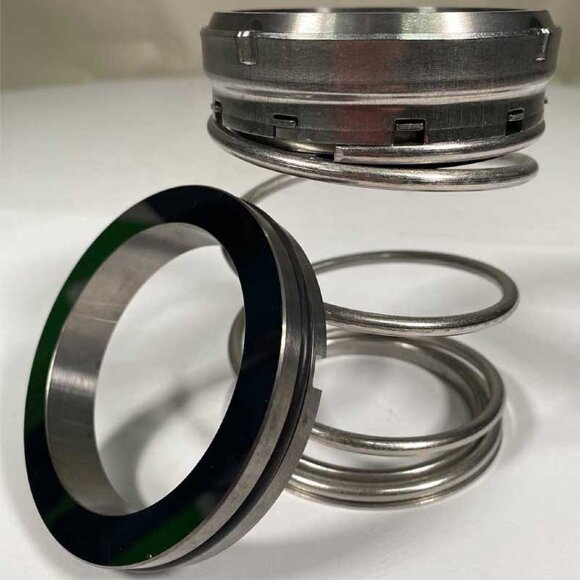

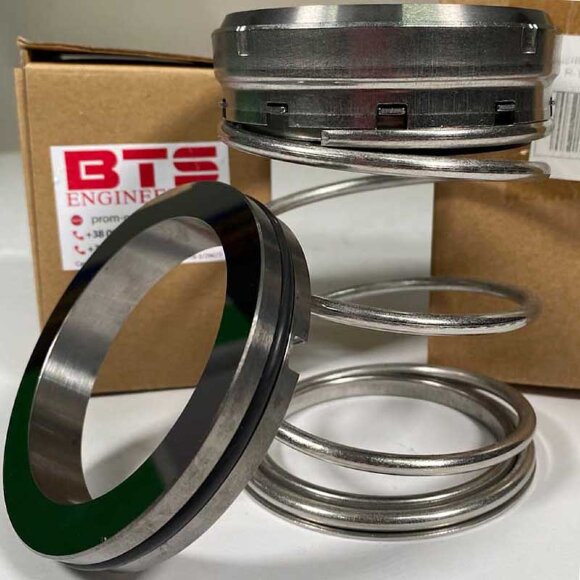

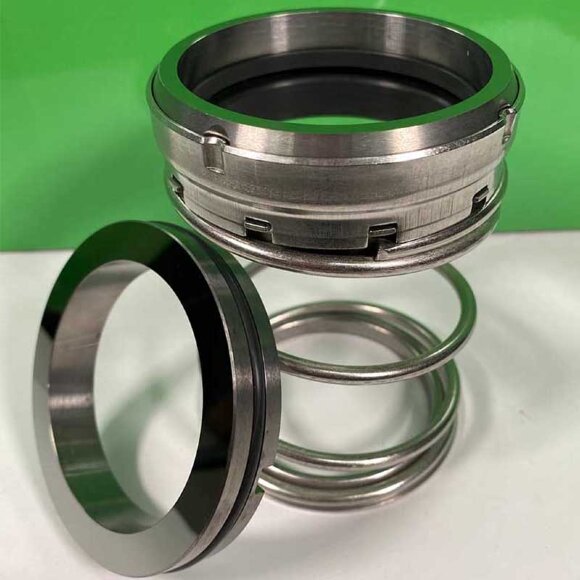

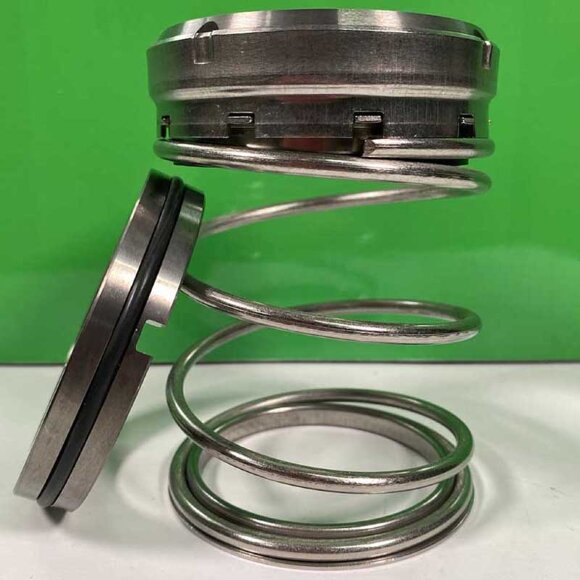

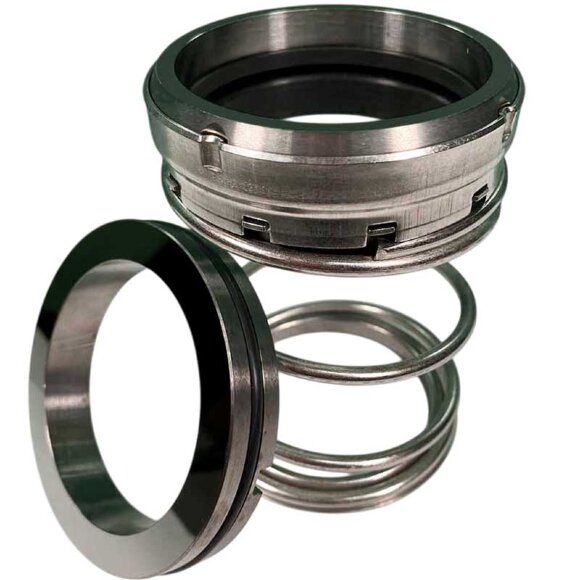

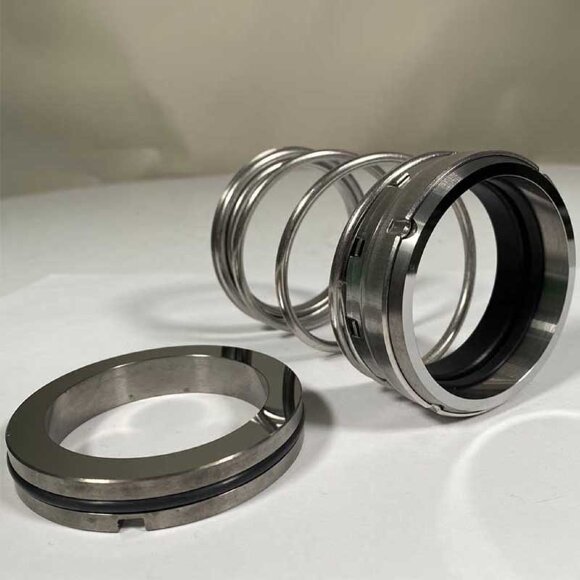

Mechanical seal for pump GRUNDFOS R-T1 3, SIC/SIC, VITON, 304

Mechanical seal for pump GRUNDFOS R-T1 3, SIC/SIC, VITON, 304

$-19

Documentation

Download instructions, catalog for Mechanical seal for pump GRUNDFOS R-T1 3, SIC/SIC, VITON, 304

Overview

The R-T1 mechanical shaft seal is used at temperatures from -40 to + 180°C, with a pressure of up to 1.7 MPa and a rotation speed of up to 13 m/s. It does not depend on the direction of rotation of the shaft. It has a reliable transmission due to its special design, which allows it to work in high pressure conditions. The R-T1 seal is used in pumps, mixers, air compressors, fans and other equipment. It is often used in the pulp and paper, petrochemical, food, processing, and energy industries. This seal is widely used in slurry pumps, in particular Mission Magnum & Supreme 2500, MCM250, Halco2500, Double Life250, Mattco, Harrisburg, Cobra, Dragon Derrickk premium 250 Analogues: John Crane Type1, Vulcan Type A5. Mechanical seal for pump Wilo, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, for pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for pumps Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Characteristics

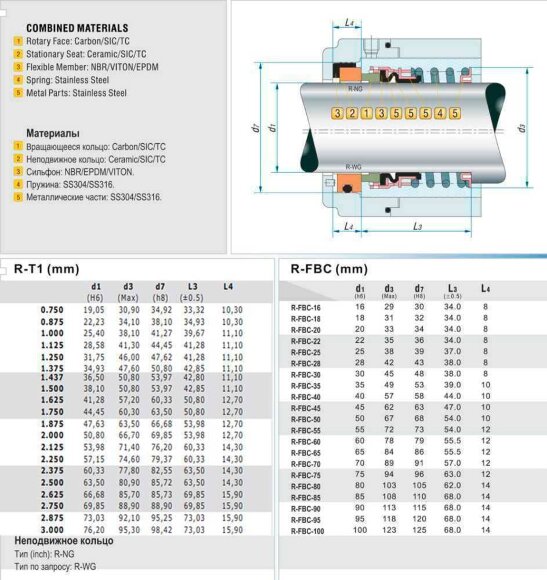

Outer diameter of the fixed ring, mm	98,42
Shaft diameter	3"
Producer	BTS Engineering
Stationary and rotating face	SIC/SIC
Material of metal part	AISI 304 stainless steel
Pressure	1.7 MPa
Rotation velocity	13 m/s
Operating temperature	-40°C +200°C
Seal type	R-T1
Rubber type	VITON
Application	Cobra, Dragon Derrickk, Halco, Harrisburg, Mattco, MCM, Mission Pump, Tuthill
Analogue for	AESSEAL P05U, AESSEAL P05T, Burgmann MG901/D1-G55, Flowserve 220, Flowserve 51, John Crane 1, LIDERING LRB00U + PF L50, Roten 51A, Sealol 43 CU Long, US SEAL E, Vulcan 22, Vulcan A5
Logistics data:
Gross weight, kg	0.55
Length of transport packing, cm	10,5
Width of transport packing, cm	10,5
Height of transport packing, cm	7
