Mechanical seal for Grundfos R-706B 12, L, SIC/SIC, VITON, 316
Documentation
Download instructions, catalog for Mechanical seal for Grundfos R-706B 12, L, SIC/SIC, VITON, 316
Overview
Mechanical seal R-706B is used in pumps Grundfos:
CH, CHI, CHE, CRK, SPK, TP, pumps, series AP
CR, CRN, NK, pumps TP Series
LM (D) , LP (D), NM , NP, DNM , DNP.

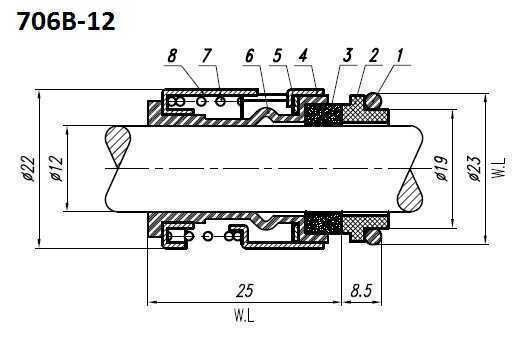

Standard shaft size: 12 mm, 16 mm, 22 mm

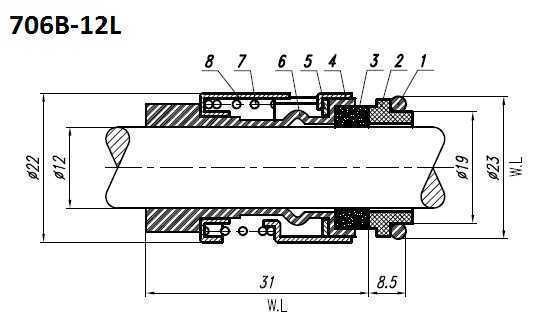

R-706B-12mm: Marking Grundfos: 96409293, 96409263, 00405096, 00405097.

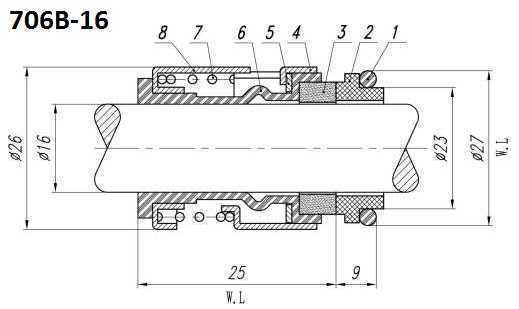

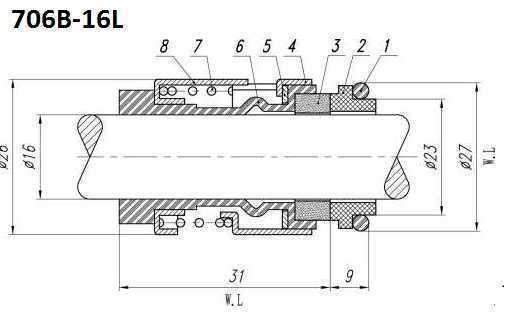

R-706B-16mm: Marking Grundfos: 96409265, 00485351, 00425062, 00425063, 00425063.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Characteristics
| Producer | BTS Engineering |
| Shaft diameter | 12 |
| Rubber type | VITON |
| Stationary and rotating face | SIC/SIC |
| Material of metal part | 316 |
| Subtype | L |
| Seal type | R-706B |
| Application | Grundfos |
| Analogue for | Grundfos BUBE, Grundfos BUBV |
| Gross weight, kg | 0.25 |
| Length of transport packing, cm | 8 |
| Width of transport packing, cm | 8 |
| Height of transport packing, cm | 10 |
