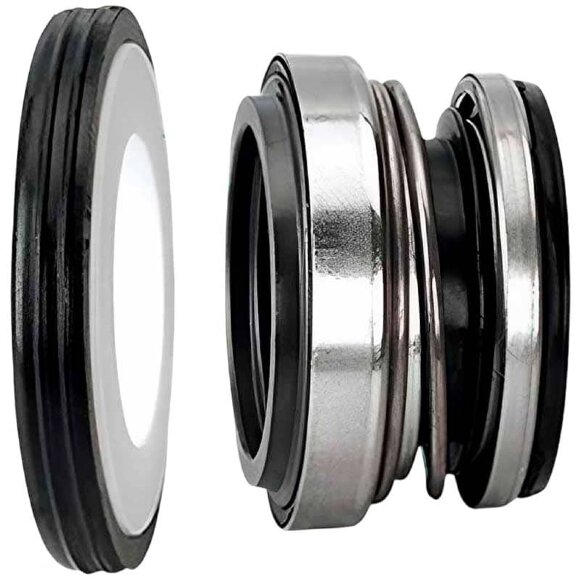

Mechanical seal for pump shaft R-103A 12, L, CAR/CER, EPDM, 304
$-1
Documentation
Download instructions, catalog for Mechanical seal for pump shaft R-103A 12, L, CAR/CER, EPDM, 304
Overview
Mechanical seal R-103A is used at temperatures from -40 to + 120 ° C, with a pressure of up to 0.4 MPa and a rotation speed of up to 3000 rpm. Mechanical seal for Wilo, K, KM, X, AX, AXP, AX, Calpeda, DAB, Ebara, Grundfos pumps, for KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam pumps, for SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK pumps, for Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum pumps.

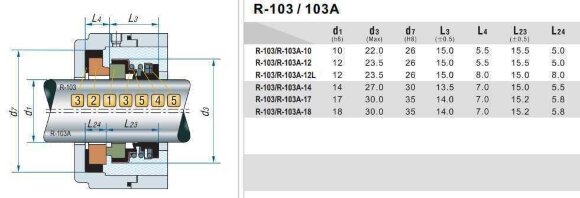

Characteristics
| Outer diameter of the fixed ring, mm | 26 |
| Shaft diameter | 12 |
| L | |
| Producer | BTS Engineering |
| Stationary and rotating face | CAR/CER |
| Material of metal part | AISI 304 stainless steel |
| Rate of turn, rpm | 3 000 |
| Pressure | 0,4 MPa |
| Operating temperature | from -20 to +120 |
| Seal type | R-103A |
| Rubber type | EPDM |
| Application | Forwater, H.World, OPTIMA, Sprut, Taifu |
| Gross weight, kg | 0.1 |
| Length of transport packing, cm | 5,5 |
| Width of transport packing, cm | 5 |
| Height of transport packing, cm | 5 |
How to properly measure a mechanical seal
