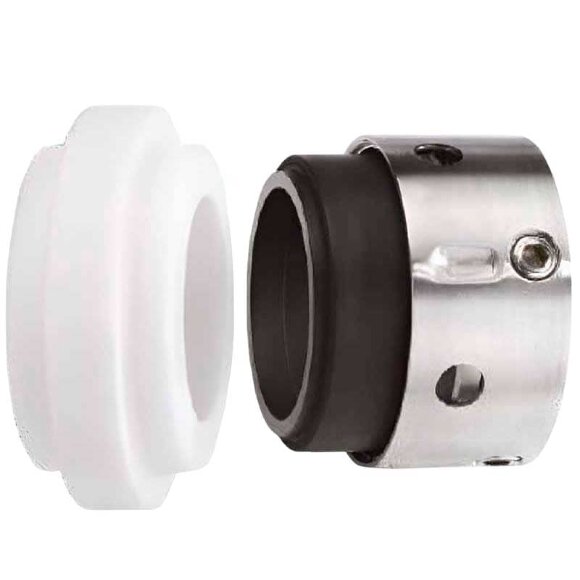

Mechanical seal for pump R-8B 2.3/8, CAR/SIC, VITON, 304, AG type VULCAN 1609S, 1609BS, STERLING 290BS
$-30
Documentation
Download instructions, catalog for Mechanical seal for pump R-8B 2.3/8, CAR/SIC, VITON, 304, AG type VULCAN 1609S, 1609BS, STERLING 290BS
Overview
The R-8B single mechanical seal is used at temperatures from -20 to + 200°C, with a pressure of up to 5.8 MPa and a rotation speed of up to 25 m/s. Mechanical seal for Wilo, K, KM, X, AX, AXP, AX, Calpeda, DAB, Ebara, Grundfos pumps, for KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam pumps, for SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK pumps, for Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum pumps.
Characteristics
| Outer diameter of the fixed ring, mm | 82,55 |
| Type of conta-ring | AG |
| Shaft diameter | 2.3/8" |
| Producer | BTS Engineering |
| Stationary and rotating face | CAR/SIC |
| Material of metal part | AISI 304 stainless steel |
| Pressure | 5.8 MPa |
| Rotation velocity | 25 m / s |
| Operating temperature | -20°C +200°C |
| Seal type | R-8B |
| Rubber type | VITON |
| Gross weight, kg | 0.5 |
| Length of transport packing, cm | 8 |
| Width of transport packing, cm | 8 |
| Height of transport packing, cm | 6,5 |

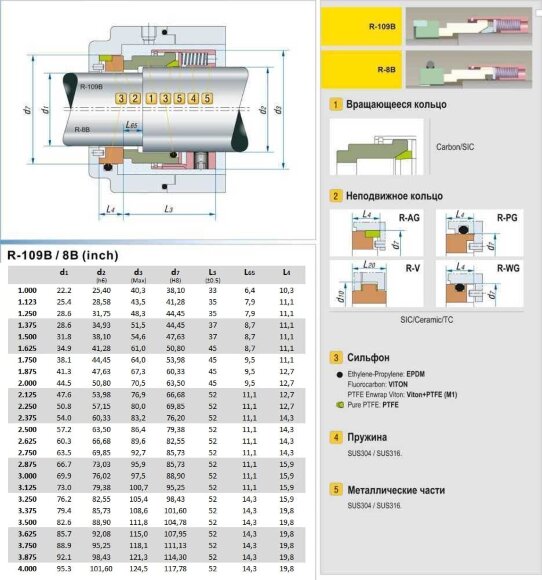

How to properly measure a mechanical seal
