- R-109B/R-8B
- Mechanical seal R-8B 2.5/8, CAR/SIC, VITON, 304, AG

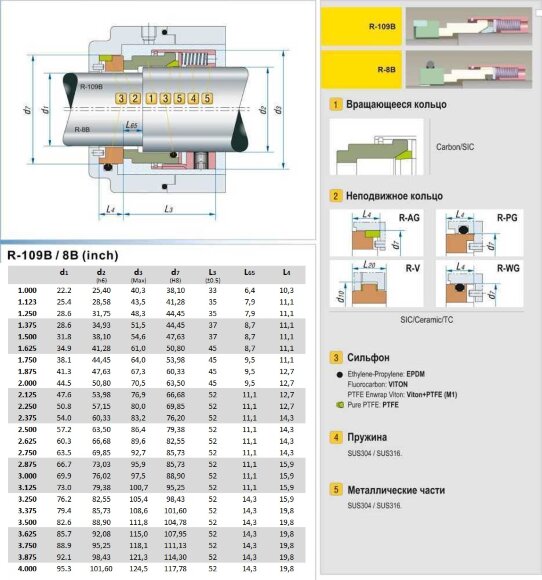

Mechanical seal R-8B 2.5/8, CAR/SIC, VITON, 304, AG
Documentation
Download instructions, catalog for Mechanical seal R-8B 2.5/8, CAR/SIC, VITON, 304, AG
Overview
Mechanical seal R-8B is used at temperatures ranging from -20 to + 120°C, with pressures up to 5, 8 mPa and the rotation speed to 25 m/sec.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Characteristics
Producer | BTS Engineering |
Shaft diameter | 2.5/8 |
Rubber type | VITON |
Material of metal part | 304 |
Stationary and rotating face | CAR/SIC |
Rotation velocity | 25 m / s |
Type of conta-ring | AG |
Operating temperature | -20°C +200°C |
Seal type | R-8B |
How to properly measure a mechanical seal
