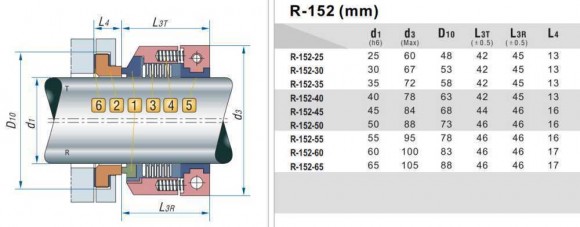

PTFE bellows mechanical seal R-152R 45, PTFE/CER, PTFE
$-25.19
Documentation
Download instructions, catalog for PTFE bellows mechanical seal R-152R 45, PTFE/CER, PTFE
Overview
R-152R mechanical seal is used at temperatures ranging from -40 to + 120°C, a pressure of 0 to 5 MPa and the rotation speed to 3000 rev/min.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Characteristics
| Producer | BTS Engineering |
| Shaft diameter | 45 |
| Rubber type | PTFE |
| Stationary and rotating face | PTFE/CER |
| Rate of turn, rpm | 3 000 |
| Pressure | 0.5 MPa |
| Operating temperature | from -20 to +120 |
| Seal type | R-152R |
| Analogue for | AESSEL B08, Anga 11, Corropac 30, Fluiten ES, John Crane 10R |
| Gross weight, kg | 0.25 |
| Length of transport packing, cm | 8 |
| Width of transport packing, cm | 8 |
| Height of transport packing, cm | 10 |
How to properly measure a mechanical seal
