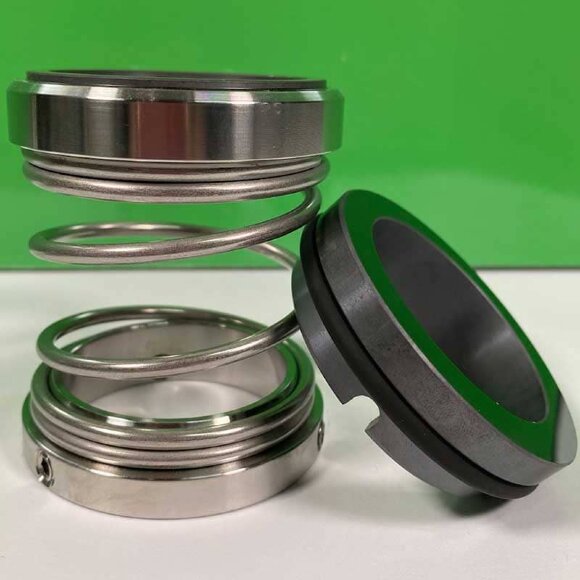

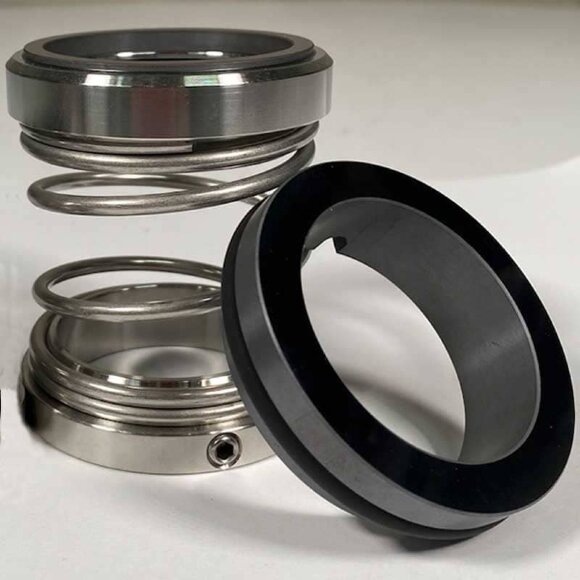

Mechanical seal for pump R-1527 95, SIC/SIC, VITON, 304, T5S43
$-27
Overview
Mechanical seal R-1527 is used at temperatures from -40 to + 150°C, with a pressure of up to 1 MPa and a rotation speed of up to 10 m/sec. Often used to seal the shaft of mixers (including Inoxpa, IH), mixers, blenders, agitators, cavitators, dispersers. Analog of mechanical seals: Crane 521 seal, Flowserve 240 seal, Latty T400 seal, etc. Mechanical seal for pump Wilo, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, for pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for pumps Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Characteristics
| Outer diameter of the fixed ring, mm | 120 |
| Type of conta-ring | T5S43 |
| Shaft diameter | 95 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC |
| Material of metal part | AISI 304 stainless steel |
| Rotation velocity | 10 m/s |
| Pressure | 1.0 MPa |
| Operating temperature | -40°C +150°C |
| Seal type | R-1527 |
| Rubber type | VITON |
| Application | D-SUB, IH, Inoxpa, KSB |
| Analogue for | Flexibox R20, Flexibox R50, Flowserve 240, Latty T400, NIPPON PILLAR US-2, NIPPON PILLAR US-3, Sealol 1527, Vulcan 97 |
| Gross weight, kg | 0.95 |
| Length of transport packing, cm | 13,5 |
| Width of transport packing, cm | 13,5 |
| Height of transport packing, cm | 12 |
How to properly measure a mechanical seal
