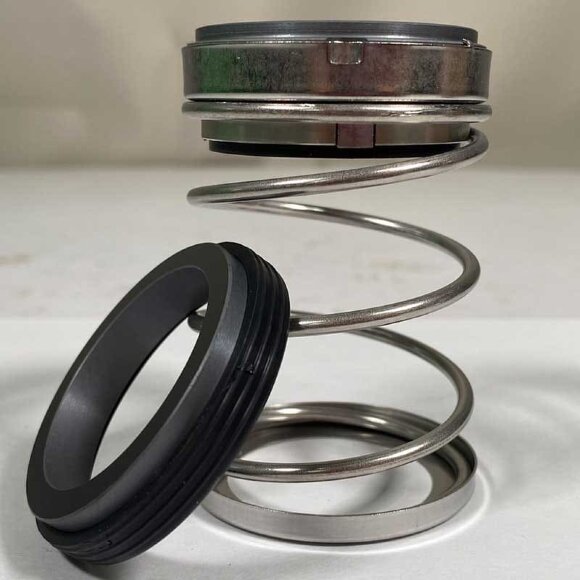

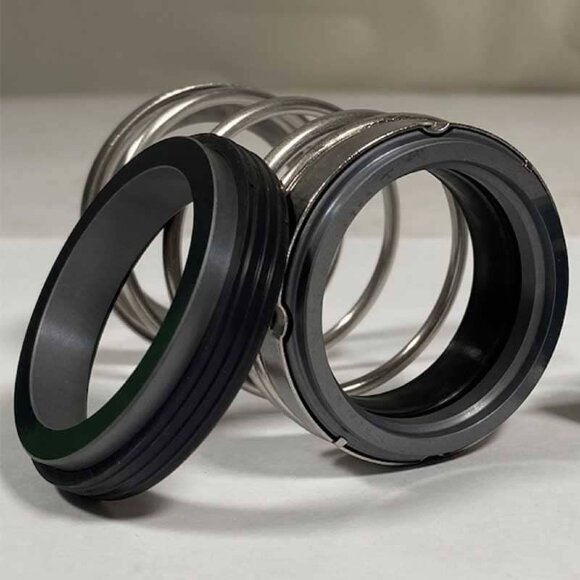

Mechanical seal R-560C 32, CAR/SIC, EPDM, 304, T1S43
Documentation
Download instructions, catalog for Mechanical seal R-560C 32, CAR/SIC, EPDM, 304, T1S43
Overview
Mechanical seal R-560C - is a single seal that is used at temperatures ranging from -20 to + 150°C, a pressure up to 1 MPa and 8 rotation speed to 13 m/s. Due to the established freely rotating ring and a high mobility along the axis of the bellows, the oil seal adapts itself to deviations of the shaft and misalignment.
Used in centrifugal pumps, turbine pumps, compressors, pumps for hot water, agitators, mixers and other equipment for the petroleum, chemical and food industries.
Possible use in pumps: Pedrollo, JL, JLM.
Analogue mechanical seals: Sealol Type43, Vulcan Tupe24.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Characteristics
| Producer | BTS Engineering |
| Shaft diameter | 32 |
| Rubber type | EPDM |
| Stationary and rotating face | CAR/SIC |
| Material of metal part | 304 |
| Type of conta-ring | T1S43 |
| Pressure | 1.5 MPa |
| Rotation velocity | 13 m/s |
| Operating temperature | -20°C + 150°C |
| Seal type | R-560C |
| Application | WILO |
| Analogue for | Burgmann EA560 |
| Gross weight, kg | 0.25 |
| Length of transport packing, cm | 8 |
| Width of transport packing, cm | 8 |
| Height of transport packing, cm | 10 |
