- R-58B/59B

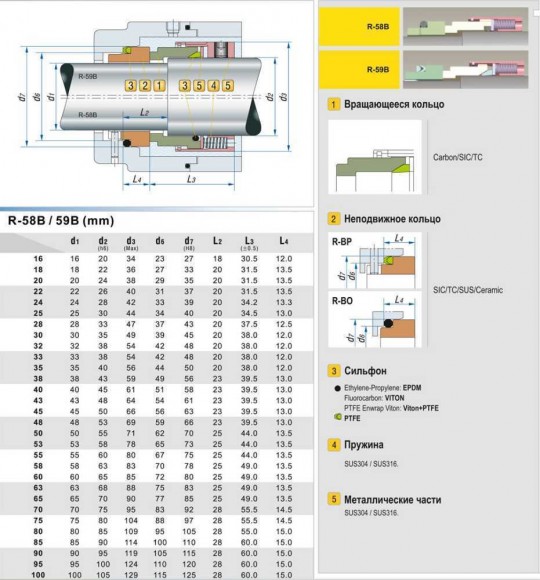

- Mechanical seal R-58B 35, CAR/SIC, VITON, 304, ВО
Mechanical seal R-58B 35, CAR/SIC, VITON, 304, ВО
Documentation
Download instructions, catalog for Mechanical seal R-58B 35, CAR/SIC, VITON, 304, ВО
Overview
R-58B mechanical seal is used at temperatures ranging from -40 to + 120°C, a pressure of 5 MPa and 2 rotation speed of 25 m/sec.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Characteristics
Producer | BTS Engineering |
Shaft diameter | 35 |
Rubber type | VITON |
Material of metal part | 304 |
Stationary and rotating face | CAR/SIC |
Rotation velocity | 25 m / s |
Pressure | 5.2 MPa |
Type of conta-ring | ВО |
Operating temperature | -40°C +200°C |
Seal type | R-58B |
Analogue for | Hermetica 351, AESSEAL M04SU, AESSEAL M04S, Burgmann BT-C5.KB, John Crane 58B, LIDERING LMS20B, Vulcan 1659BS |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Gross weight, kg | 0.25 |
