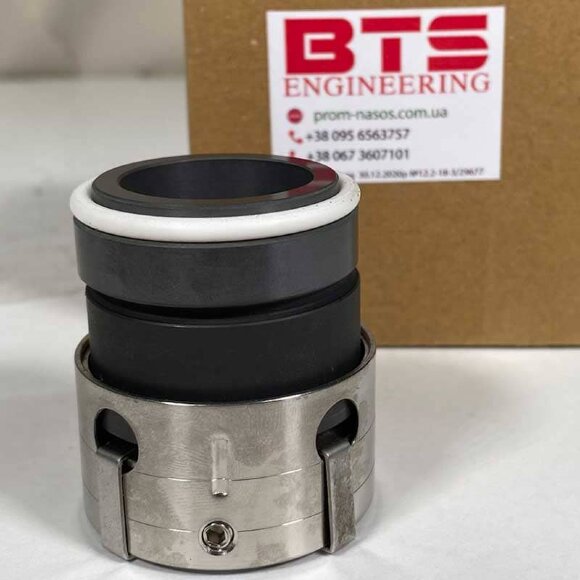

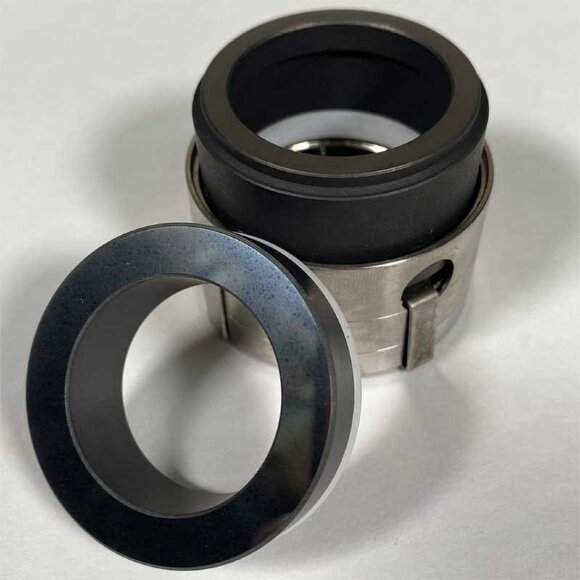

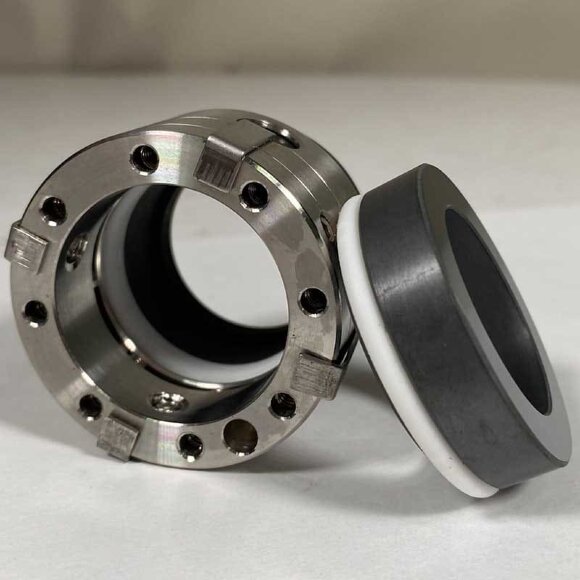

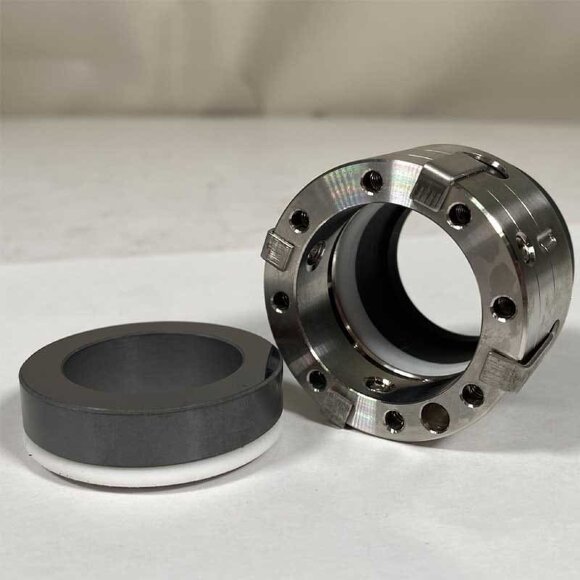

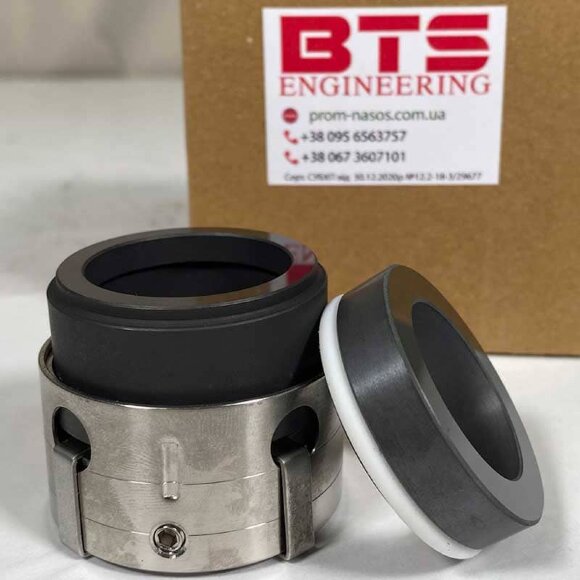

Mechanical seal R-59B 28, CAR/SIC, PTFE, 316, ВО
Documentation
Download instructions, catalog for Mechanical seal R-59B 28, CAR/SIC, PTFE, 316, ВО
Overview
R-59B mechanical seal is used at temperatures ranging from -40 to + 120°C, a pressure of 5 MPa and 2 rotation speed of 25 m/sec.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Characteristics
| Producer | BTS Engineering |
| Shaft diameter | 28 |
| Rubber type | PTFE |
| Stationary and rotating face | CAR/SIC |
| Material of metal part | 316 |
| Type of conta-ring | ВО |
| Pressure | 5.2 MPa |
| Rotation velocity | 25 m / s |
| Operating temperature | -40°C +200°C |

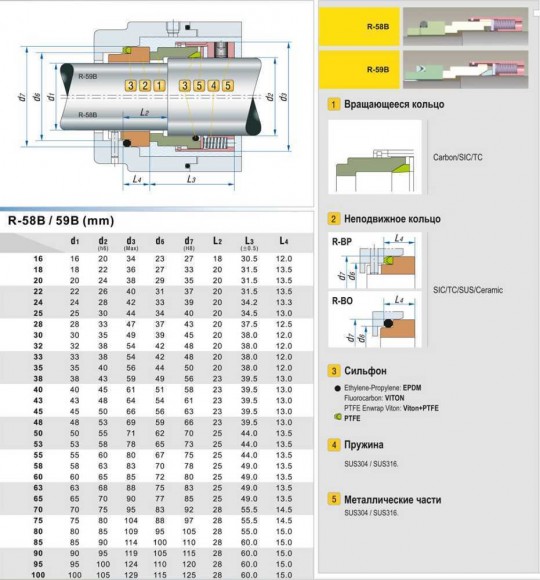

| Seal type | R-59B |
| Application | KSB |
| Analogue for | AESSEAL M04, AESSEAL M04U, Anga VBT, Burgmann BT-C56.KB, Vulcan 1659B |
| Gross weight, kg | 0.25 |
| Length of transport packing, cm | 8 |
| Width of transport packing, cm | 8 |
| Height of transport packing, cm | 10 |
Video Mechanical seal R-59B 28, CAR/SIC, PTFE, 316, ВО
How to properly measure a mechanical seal
