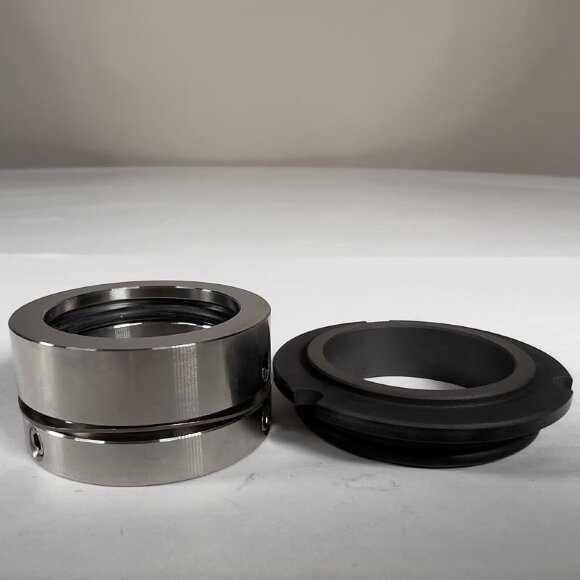

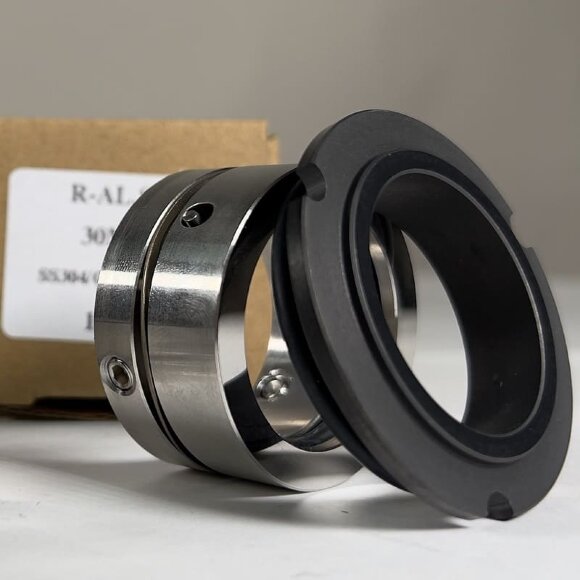

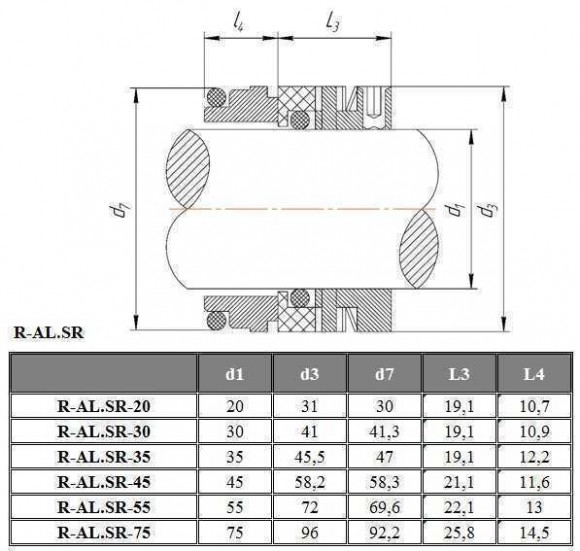

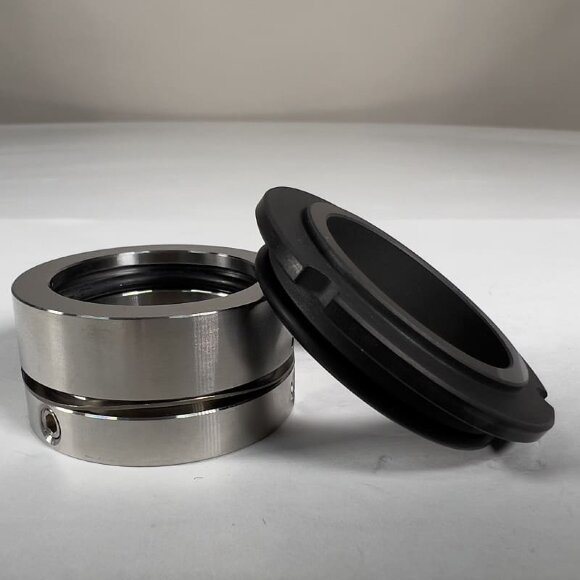

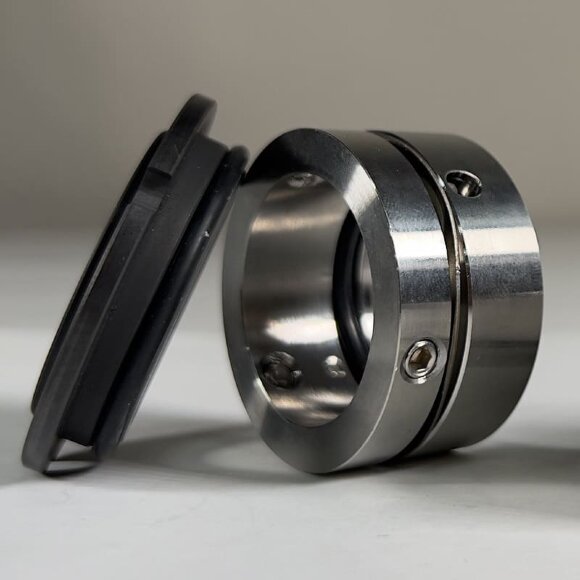

Mechanical seal Alfa Laval R-AL.SR 20, SS/CAR, EPDM, 304

ProducerBTS Engineering
Shaft diameter20
Rubber typeEPDM
Material of metal part304
Stationary and rotating faceSS/CAR
All specifications
Ukraine: Pre-order onlyPoland: Pre-order onlyGermany: Pre-order only
Vendor code: 18989_20__SS/CAR__EPDM__304
Specify the price and terms of delivery with the manager

Estimated delivery date: 23.05.2024

$67.34netto
-+Buy

Overview

BTS Engineering
R-AL.SR mechanical seal is used at temperatures ranging from -30 to + 180°C, a pressure up to 1 to 2 MPa and the rotation speed to 20 m/s. Designed for pumps Alfa Laval Series SSR SRU1, SRU2, SRU3, SRU4, SRU5, SRU6. Mechanical seal R-AL.SR successfully zarekomedovalo itself in pumps food, dairy, brewing industry. The materials used in the manufacture of mechanical seals meet FDA requirements: The fixed part - Sic / TC / SS, movable part - Car / Sic / TC, Secondary seals - PTFE, VITON, EPDM. Analogs: Aesseal W03U / W03SU / W03S / W03, John Crane 87 (EI / EC) seal, Roplan RTH87 / R90 seal, Sterling 280W / 282 seal, Vulcan 1688W. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Characteristics

ProducerBTS Engineering
Shaft diameter20
Rubber typeEPDM
Material of metal part304
Stationary and rotating faceSS/CAR
Seal typeR-AL.SR
ApplicationAlfa Laval
Analogue forAESSEAL W03SU, AESSEAL W03S, AESSEAL W03DU, AESSEAL W03, AESSEAL W03U, John Crane 87 (EI/ EC) seal, Roplan RTH87 / R90 seal, Sterling 280W, Vulcan 1688W
Length of transport packing, cm8
Width of transport packing, cm8
Height of transport packing, cm10
Gross weight, kg0.25

Categories:R-AL.SRALFA LAVAL - mechanical seal

How to properly measure a mechanical seal
