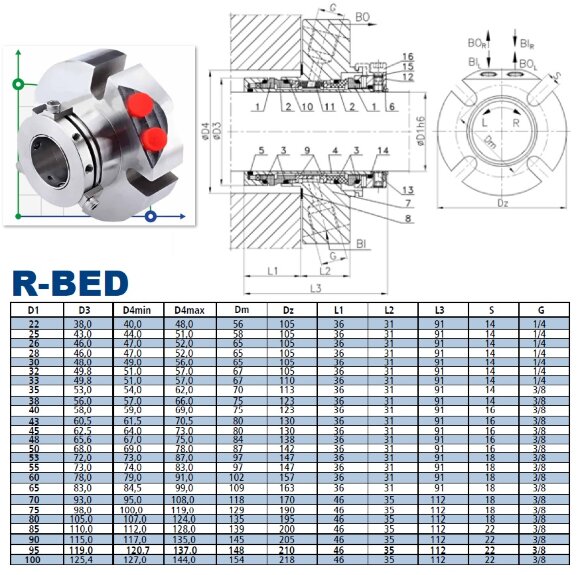

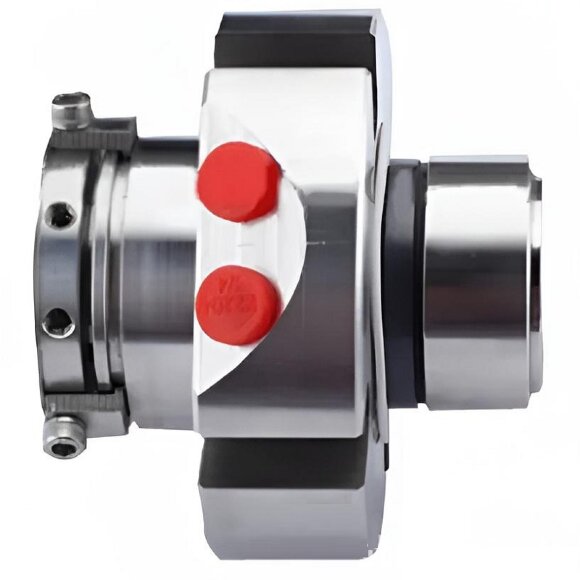

Double cartridge seal R-BED 100, SIC/SIC/CAR/SIC/VITON, M/316
$-149.66
Documentation
Download instructions, catalog for Double cartridge seal R-BED 100, SIC/SIC/CAR/SIC/VITON, M/316
Overview
R-BED cartridge double seal for process centrifugal pumps and mixers operating with abrasive, viscous and explosive liquids. Independent of the direction of shaft rotation, balanced, multi-spring. Requires the use of a barrier fluid system (according to API 52, API 55, API 53a, API 53b, API 53c, API 54 schemes). Application range - pressure up to 1.6 MPa (maximum buffer fluid pressure 2.0 MPa). Temperature - up to 200°C, sliding speed - up to 12.5 m/s.
Characteristics
| Shaft diameter | 100 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
| Rotation velocity | 12,5 м/сек |
| Operating temperature | -20°C +200°C |
| Seal type | R-BED |
| Rubber type | VITON |
How to properly measure a mechanical seal
