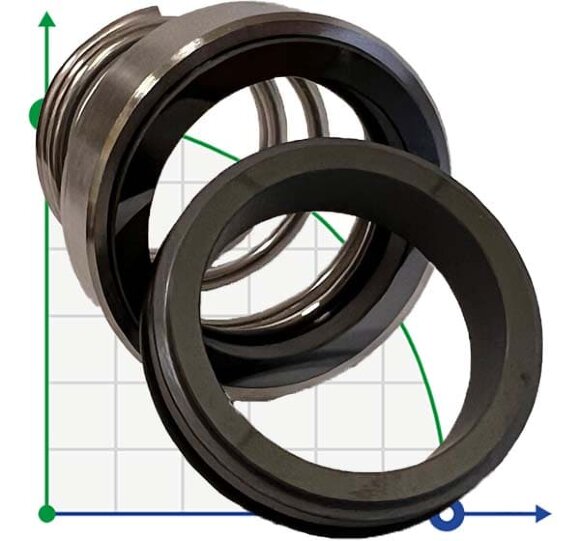

Single mechanical seal R-BT-RN 70, SIC/CAR, EPDM, 304, T8RN

ProducerBTS Engineering
Shaft diameter70
Rubber typeEPDM
Material of metal part304
Stationary and rotating faceSIC/CAR
All specifications
Ukraine: In stockPoland: Pre-order onlyGermany: Pre-order only
Vendor code: 13719_70__SIC/CAR__EPDM__304__T8RN
$278.60netto
-+Buy

Overview

BTS Engineering
Mechanical seal R-BT-RN is used at temperatures ranging from -40 to + 120°C, a pressure up to 1 MPa and the rotation speed to 15 m/sec. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Characteristics

ProducerBTS Engineering
Shaft diameter70
Rubber typeEPDM
Material of metal part304
Stationary and rotating faceSIC/CAR
Rotation velocity15 m/s
Pressure1.0 MPa
Type of conta-ringT8RN
Operating temperature-40°C +200°C
Seal typeR-BT-RN
ApplicationCalpeda
Analogue forAESSEAL T03U, AESSEAL T03, Burgmann BT-RN, DIMER TCO.121-12, Flowserve 42, Latty T900, LIDERING RN / LS60, Roten 2, Vulcan 12
Length of transport packing, cm8
Width of transport packing, cm8
Height of transport packing, cm10
Gross weight, kg0.25

Video Single mechanical seal R-BT-RN 70, SIC/CAR, EPDM, 304, T8RN

How to properly measure a mechanical seal
