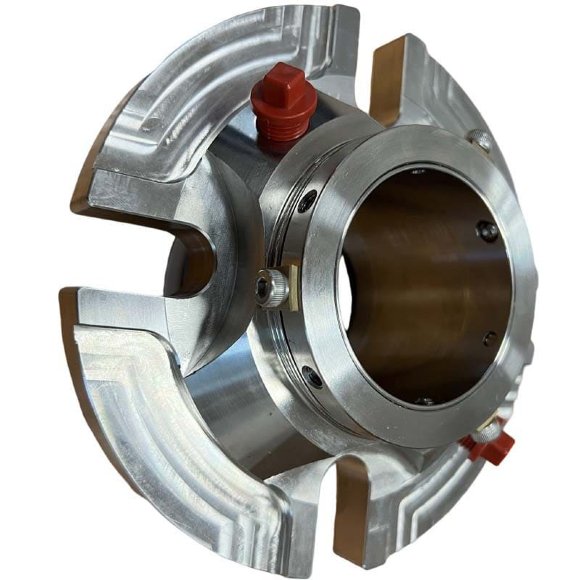

Cartridge seal R-CSM 33, SIC/SIC, VITON, 304
Documentation
Download instructions, catalog for Cartridge seal R-CSM 33, SIC/SIC, VITON, 304
Overview
The R-CSM cartridge type seal is single, does not depend on the direction of rotation of the shaft, the friction pair is hydraulically unloaded.
Application: for mixers, agitators, reactors, both in horizontal and vertical versions, for sealing the vaporous medium.
The design allows you to compensate for a large radial runout of the shaft (a displacement of up to 1.5 mm is allowed) and can be used for long cantilever shafts. When choosing the appropriate materials, it can be used in a chemically aggressive environment. The seal is single, does not depend on the direction of rotation of the shaft, the friction pair is hydraulically unloaded. Appropriate channels are provided for the supply and discharge of the coolant.
Type: AESSEAL CSM™
Used with binding plans API 2, API 32
Pressure: ≤ 2.1 MPa
Speed: ≤ 20 m / s
Temperature: -30C ~ + 220C
Movable Ring (SiC / CAR / TC)
Stationary Ring (SiC / TC)
Secondary seal (VlTON / PTFE)
Other Parts (SUS304 / SUS316 / Titanium / Hastelloy-C)
Characteristics
| Producer | BTS Engineering |
| Shaft diameter | 33 |
| Rubber type | VITON |
| Stationary and rotating face | SIC/SIC |
| Material of metal part | 304 |
| Rotation velocity | 20 m/s |
| Pressure | 2.1 MPa |
| Operating temperature | -30°C +220°C |
| Seal type | R-CSM |
| Analogue for | AESSEAL CSM™ |
