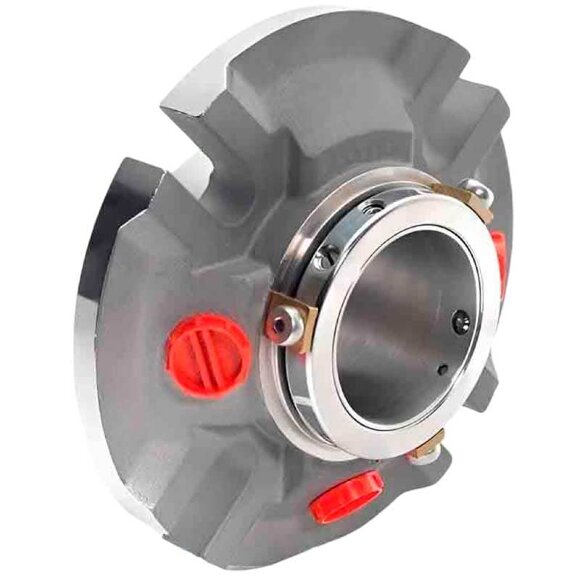

Cartridge seal for pump R-CURC 3, SIC/SIC, VITON, 316L
$-122
Overview
R-CURC – single cartridge seal, hydraulically unloaded, with a spring-loaded rotating part, independent of the direction of shaft rotation. The design includes: graphite throttle ring, channels for supplying and draining coolant, springs that do not contact the product. The following seal modifications are available: - R-CRCO – with built-in lip seal; - R-CURE – with auxiliary external friction pair. Type: AESSEAL CURC, AESSEAL CRCO, AESSEAL CURE.
Characteristics
| Shaft diameter | 3" |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC |
| Material of metal part | AISI 316L |
| Rotation velocity | 20 m/s |
| Pressure | 2.3 MPa |
| Operating temperature | -20°C +200°C |
| Seal type | R-CURC |
| Rubber type | VITON |
| Analogue for | Aesseal CURC |
| Gross weight, kg | 1.1 |
| Length of transport packing, cm | 10,5 |
| Width of transport packing, cm | 10,5 |
| Height of transport packing, cm | 7 |
