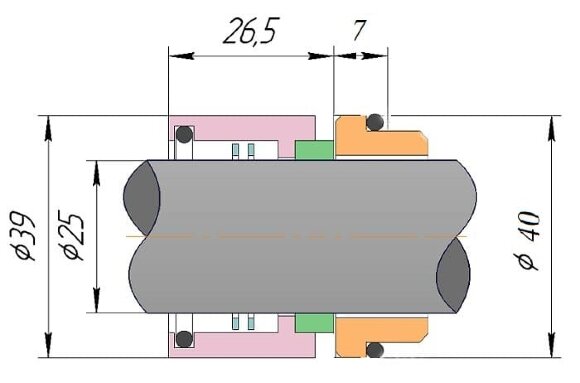

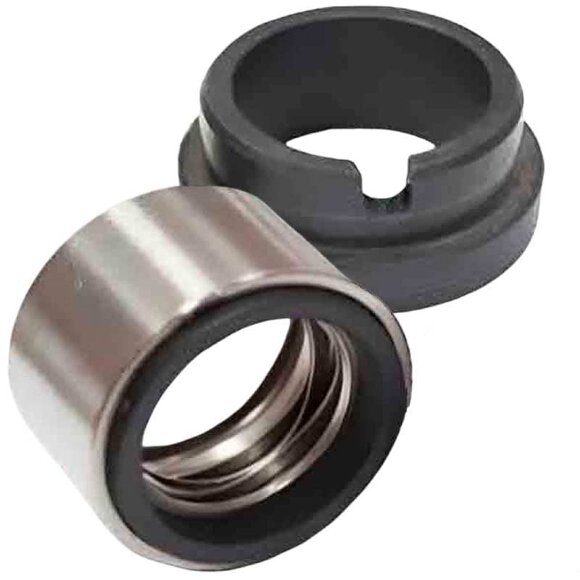

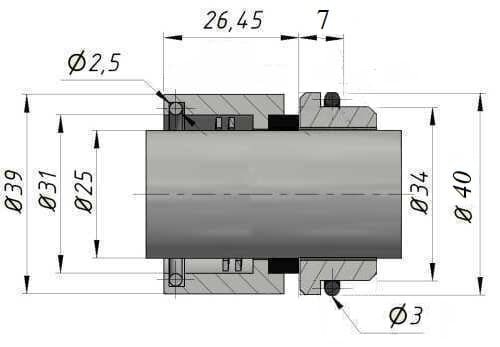

Mechanical seal for pump shaft R-GEA 25, CAR/SIC, VITON, 304
$-6
Documentation
Download instructions, catalog for Mechanical seal for pump shaft R-GEA 25, CAR/SIC, VITON, 304
Overview
Single mechanical seal R-GEA with wave protected spring, arbitrary direction of shaft rotation. Used for GEA Tuchenhagen pumps. Mechanical seal for Wilo, K, KM, X, AX, AXP, AX, Calpeda, DAB, Ebara, Grundfos pump, for KSB pump, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for SPERONI pump, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for Tuchenhagen pump, ALFA LAVAL, Donjoy, Mission Magnum.
Characteristics
| Outer diameter of the fixed ring, mm | 40 |
| Shaft diameter | 25 |
| Producer | BTS Engineering |
| Stationary and rotating face | CAR/SIC |
| Material of metal part | AISI 304 stainless steel |
| Seal type | R-GEA |
| Rubber type | VITON |
| Application | GEA Tuchenhagen, GEA® Hilge |
| Gross weight, kg | 0.1 |
| Length of transport packing, cm | 5,5 |
| Width of transport packing, cm | 5 |
| Height of transport packing, cm | 5 |
How to properly measure a mechanical seal
