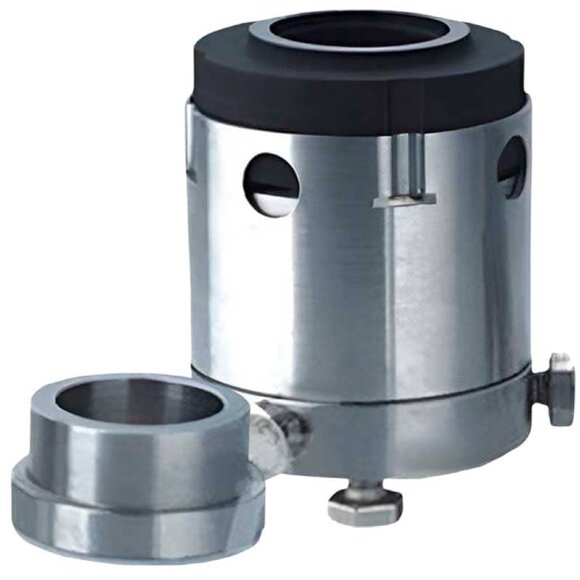

Mechanical seal R-HG204B 130, SIC/CAR, VITON, 316
$-68
Documentation
Download instructions, catalog for Mechanical seal R-HG204B 130, SIC/CAR, VITON, 316
Overview
Mechanical seal R-HG204 is used at temperatures from -20 to + 200°C, with a pressure of up to 0.6 MPa and a rotation speed of up to 500 rpm. Usually used for sealing the shaft of agitators, blenders, mixers, dispersers, cavitators, etc. Mechanical seal for Wilo, K, KM, X, AX, AXP, AX, Calpeda, DAB, Ebara, Grundfos pumps, for KSB pumps, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam pumps, for SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK pumps, for Tuchenhagen pumps, ALFA LAVAL, Donjoy, Mission Magnum.

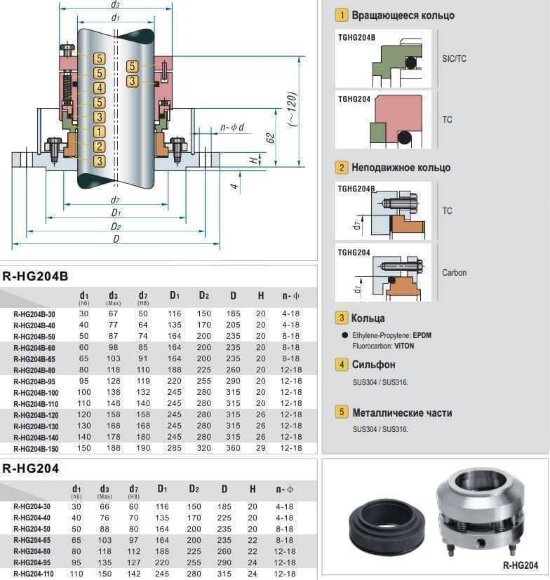

Characteristics
| Outer diameter of the fixed ring, mm | 168 |
| Shaft diameter | 130 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/CAR |
| Material of metal part | AISI 316 stainless steel |
| Rate of turn, rpm | 500 |
| Pressure | 0,6 MPa |
| Operating temperature | -40°C +200°C |
| Seal type | R-HG204B |
| Rubber type | VITON |
| Gross weight, kg | 1.5 |
| Length of transport packing, cm | 17 |
| Width of transport packing, cm | 17 |
| Height of transport packing, cm | 15 |
How to properly measure a mechanical seal
