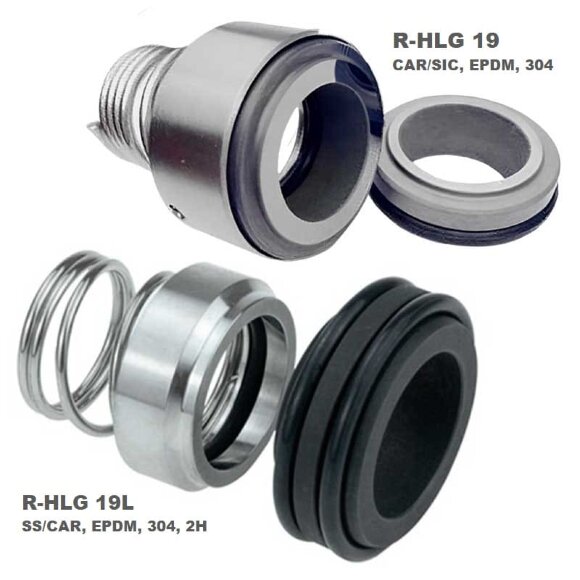

Shaft seal Hilge R-HLG 19, L, SS/CAR, EPDM, 304, 2H
Overview
Mechanical seal with R-HLG conical spring and one-way direction of rotation is used at temperatures ranging from -20°C + 120°C, pressures up to 1.0 MPa and a speed of 15 m/s.
Application: Pumps Hilge Contra series, Durietta, Euro-Hygia, Hygia.
Analogue: DIMER TCO.121-12.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Characteristics
| Producer | BTS Engineering |
| Shaft diameter | 19 |
| Rubber type | EPDM |
| Stationary and rotating face | SS/CAR |
| Material of metal part | 304 |
| Type of conta-ring | 2H |
| Pressure | 1.0 MPa |
| Subtype | L |
| Rotation velocity | 15 m/s |
| Operating temperature | from -20 to +120 |
| Seal type | R-HLG |
| Application | Hilge |
| Analogue for | AESSEAL T03, Burgmann BT-RN, DIMER TCO.121-12, Flowserve 42, Latty T900, LIDERING RN / LS60, Roten 2, Vulcan 12 |
| Gross weight, kg | 0.25 |
| Length of transport packing, cm | 8 |
| Width of transport packing, cm | 8 |
| Height of transport packing, cm | 10 |
