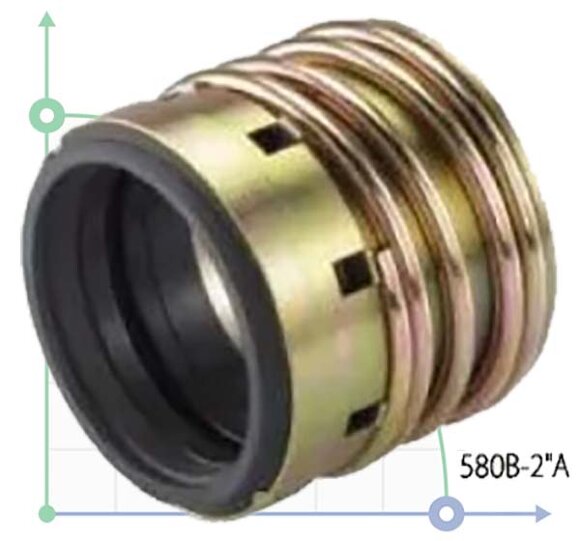

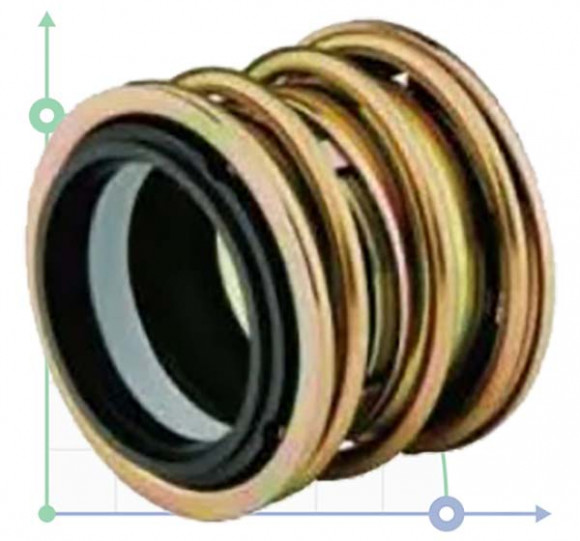

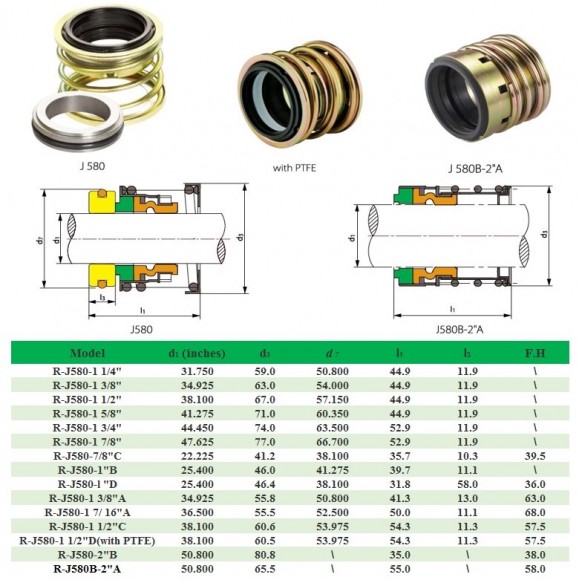

Compressor shaft seal R-J580 2, A, CAR/SIC, HNBR, A3/65Mn
Documentation
Download instructions, catalog for Compressor shaft seal R-J580 2, A, CAR/SIC, HNBR, A3/65Mn
Overview
The compressor shaft seal R-J580 is a single seal, used in compressors when the product leakage into the atmosphere is not harmful (air or nitrogen compressors)
Application: CARRIER 05K / 05K2 / 05K4 / 05K4 VOLTAS 5H, for Maxima 1300MT / 1300 /1200 MT / 1200 /1000 refrigeration units, Supra 622 / 644 / 722 / 744 / 750 / 750MT / 850U / 850 / 850MT / 1150MT / 1150 / 650 / 844 / 822, Genesis R70 / 1000 / TM800.
Used on Bitzer, Carrier, Dorin, Frascold, Refcomp, Thermo King, Allko, Songz, Mando installations.
Article number: 17-44740-00, 174474000, 17-4474000, 17-44785-00, 174478500, 17-4478500, 3501748,
TC3501748Temperature: -30°~150°
Pressure: ≤2.8 m
Speed: ≤13 m/sec
Materials:
Rotary ring: Carbon/SIC
Stationary ring: SIC/TC.
Bellows: HNBR .
Spring: SS304 / SS316.
Metal parts: SS304 / SS316/A3
Characteristics
| Producer | BTS Engineering |
| Shaft diameter | 2 |
| Rubber type | HNBR |
| Stationary and rotating face | CAR/SIC |
| Material of metal part | A3/65Mn |
| Pressure | 2.8 Мпа |
| Subtype | A |
| Rotation velocity | 13 m/s |
| Operating temperature | -30°C +150°C |
| Seal type | R-J580 |
| Application | Allko, Bitzer, CARRIER, Dorin, Frascold, Mando, Refcomp, Songz, Thermo King |
Video Compressor shaft seal R-J580 2, A, CAR/SIC, HNBR, A3/65Mn
How to properly measure a mechanical seal
