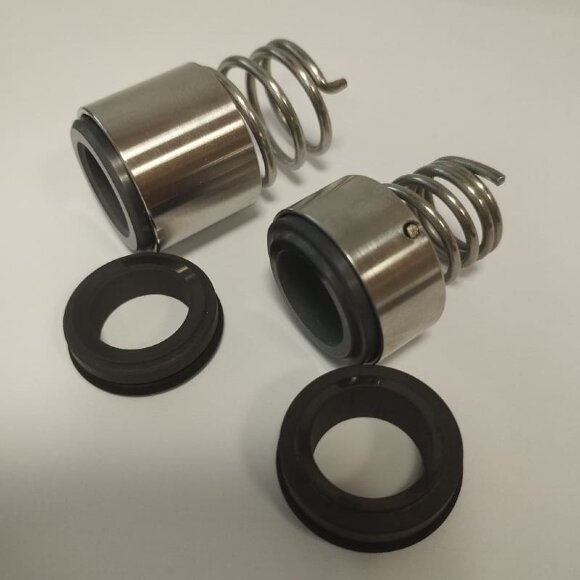

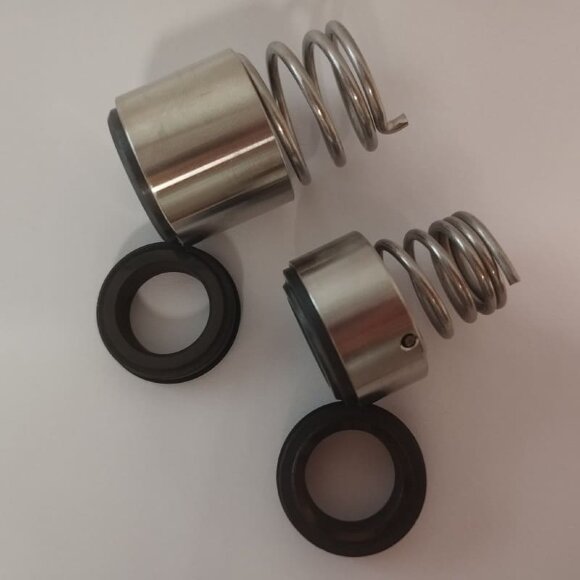

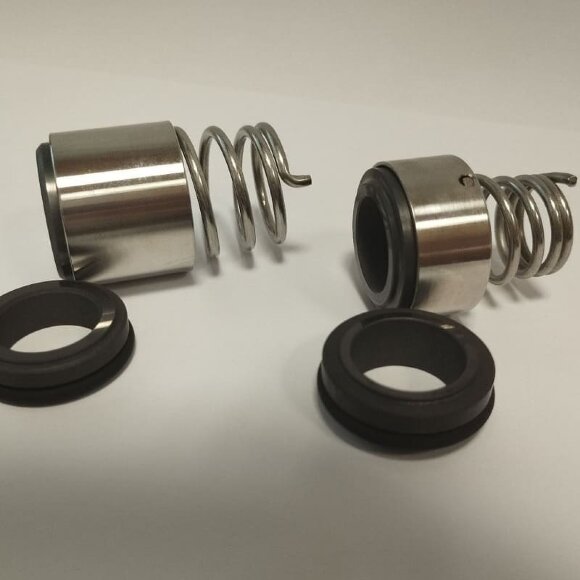

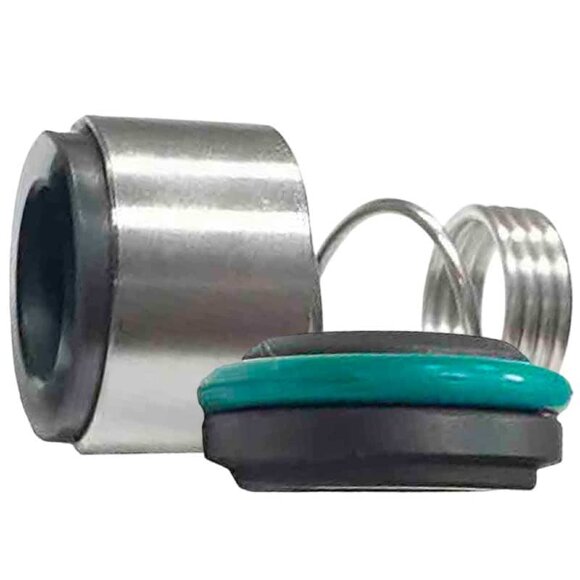

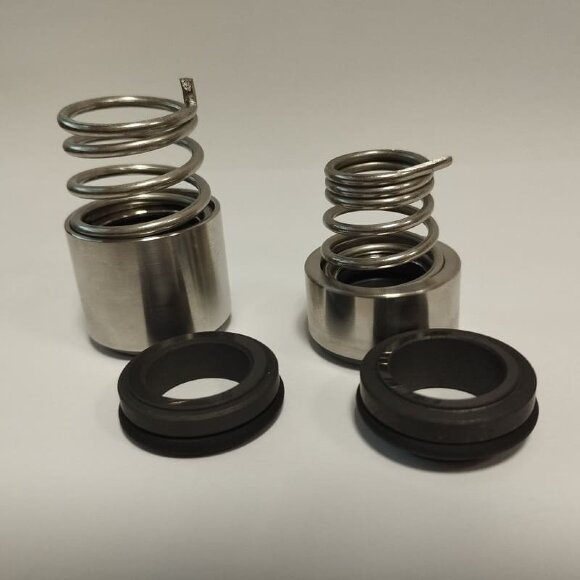

Shaft seals Lowara R-LW 12, SIC/SIC, VITON, 316 type VULCAN 135, BURGMANN BT-FH, AESSEAL T06D, T06DU, ROTEN UNITEN 5K
$-3
Documentation
Download instructions, catalog for Shaft seals Lowara R-LW 12, SIC/SIC, VITON, 316 type VULCAN 135, BURGMANN BT-FH, AESSEAL T06D, T06DU, ROTEN UNITEN 5K
Overview
Single mechanical seals are used in LOWARA SV pumps on a shaft of 12 and 16 mm. It is possible to use in Lowara SV-F 15SV05F040T pumps. Mechanical seal for Wilo, K, KM, X, AX, AXP, AX, Calpeda, DAB, Ebara, Grundfos pumps, for KSB pumps, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam pumps, for SPERONI pumps, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK pumps, for Tuchenhagen pumps, ALFA LAVAL, Donjoy, Mission Magnum.

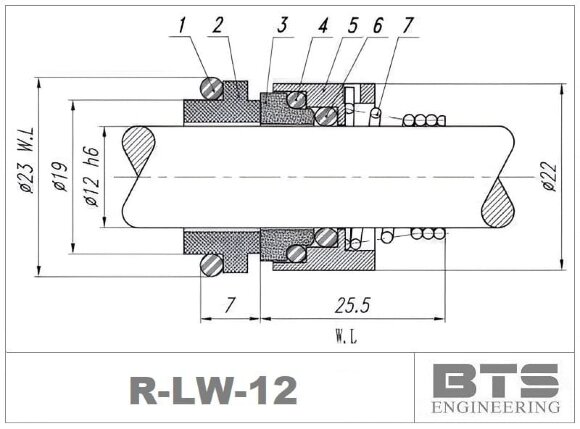

Characteristics
| Outer diameter of the fixed ring, mm | 23 |
| Shaft diameter | 12 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC |
| Material of metal part | AISI 316 stainless steel |
| Seal type | R-LW |
| Rubber type | VITON |
| Application | LOWARA |
| Analogue for | AESSEAL T06D, AESSEAL T06DU, Burgmann BT-FH, Roten UNITEN 5K, Vulcan 135 |
| Gross weight, kg | 0.3 |
| Length of transport packing, cm | 5,5 |
| Width of transport packing, cm | 5,5 |
| Height of transport packing, cm | 5 |
How to properly measure a mechanical seal
