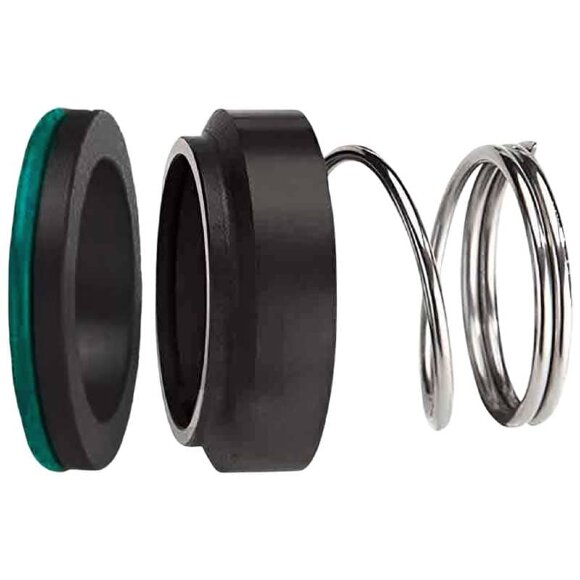

Mechanical seal R-M2N 28, CAR/SIC, EPDM, 304, G6
$-3
Documentation
Download instructions, catalog for Mechanical seal R-M2N 28, CAR/SIC, EPDM, 304, G6
Overview

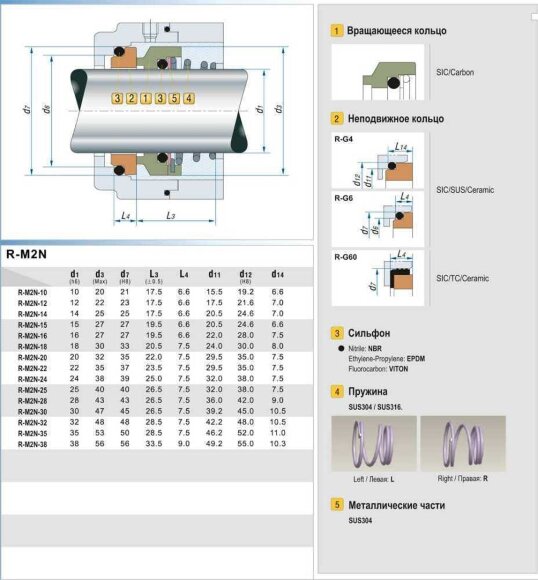

R-M2N - single unloaded seal with a conical spring and one-way direction of movement. The moving part is made of solid carbon graphite or silicon carbide. Used in circulation pumps, water supply and heating systems, compressors, mixers, mixers. The R-M2N mechanical seal is used at temperatures from -20 to + 180°C, with a pressure of up to 1 MPa and a rotation speed of up to 15 m/sec. Analog: AESSEAL T07 / T07D / T07X, Burgmann M2N, Roten UNITEN 22, Hecker HN 400A. Mechanical seal for pump Wilo, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, for pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for pumps Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Characteristics
| Outer diameter of the fixed ring, mm | 43 |
| Type of conta-ring | G6 |
| Shaft diameter | 28 |
| Producer | BTS Engineering |
| Stationary and rotating face | CAR/SIC |
| Material of metal part | AISI 304 stainless steel |
| Pressure | 1.0 MPa |
| Rotation velocity | 15 m/s |
| Operating temperature | -20°C +180°C |
| Seal type | R-M2N |
| Rubber type | EPDM |
| Application | EDUR, EVAC PUMP |
| Analogue for | AESSEAL T07D, AESSEAL T07, Burgmann M2N, Hecker HN 400A, Roten 22, Roten UNITEN 22 |
| Gross weight, kg | 0.1 |
| Length of transport packing, cm | 5,5 |
| Width of transport packing, cm | 5 |
| Height of transport packing, cm | 5 |
