R-M3N

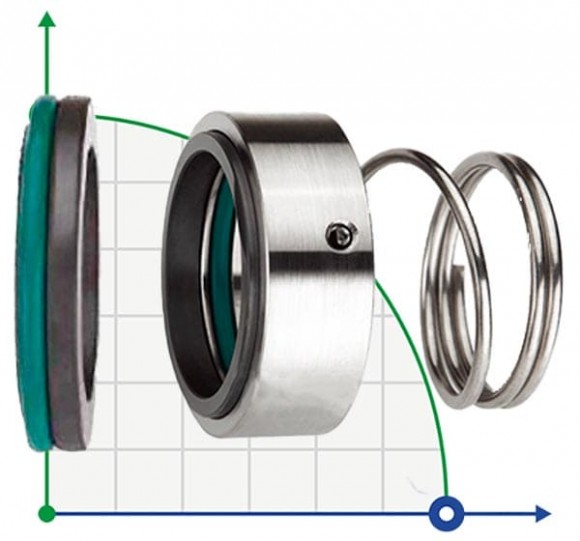

Mechanical seal R-M3N 40, SS/CAR, VITON, 304, ВТ

Mechanical seal R-M3N 40, SS/CAR, VITON, 304, ВТ

$-9.83

Documentation

Download instructions, catalog for Mechanical seal R-M3N 40, SS/CAR, VITON, 304, ВТ

Overview

Single unbalanced seal with conical spring, unilateral direction of movement. It has a wide range of destinations in the water, sewage, submersible, chemical pumps. It is applied at temperatures from -20 to + 180°C, a pressure up to 1 MPa and the rotation speed to 15 m/sec. Possible use in pumps: Allweiler, Lowara, Salpeda (N4, NM4), CM and others. Analog mechanical seals: Burgmann M3N / M3 / M32 / M37G / M37, Flowserve Pac-Seal 38 / 38D / 39, Vulcan Type 8 / 8.DIN / 8D, AESSEAL T01 / T01D / T02, ROTEN 2/22/5 / L4B , ANGA A3, Sealant M211K. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Characteristics

Producer	BTS Engineering
Shaft diameter	40
Rubber type	VITON
Stationary and rotating face	SS/CAR
Material of metal part	304
Type of conta-ring	ВТ
Pressure	1.0 MPa
Rotation velocity	15 m/s
Operating temperature	-20°C +180°C
Seal type	R-M3N
Application	ALLWEILER, Calpeda, Ebara, ERDURO, Flowserve (SIHI), Hydro-Vacuum SA, Inox (CSF Inox), KM, KSB, LOWARA, Pedrollo, Pentax, Pumpenbau Schaffhausen AG (SIHI), Sieva, Simaco, SLW, BSHM, KMS
Analogue for	Hermetica М211К, AESSEAL T01, AESSEAL T02, AESSEAL T01D, Anga A3, Burgmann M32, Burgmann M3N, Flowserve 38, Flowserve 38D, Flowserve 39, Flowserve CRO, Hecker HN 430N, Latty T800, LIDERING LS18/ LS19, Roten 2E, Roten L4B, US SEAL VGME-1, US SEAL VGME-2, US SEAL VGME-3, Vulcan 8, Vulcan 8.DIN
Logistics data:
Gross weight, kg	0.25
Length of transport packing, cm	8
Width of transport packing, cm	8
Height of transport packing, cm	10
