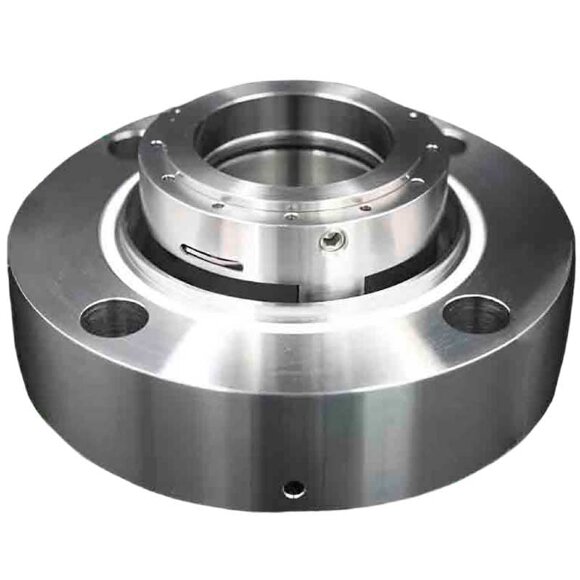

Cartridge shaft seal R-MS 90, CAR/SIC, EPDM, 304 type ANGA MS
$-124
Documentation
Download instructions, catalog for Cartridge shaft seal R-MS 90, CAR/SIC, EPDM, 304 type ANGA MS
Overview
Cartridge seal R-MS-single mechanical seal, unloaded, independent of the direction of shaft rotation, multi-spring. Designed for sealing the shafts of agitators, reactors, mixers in dry-running conditions, does not require the arrangement of auxiliary systems. Environment: slightly aggressive, environmentally friendly substances. Made of materials in accordance with FDA. Temperature: -20°~ 180° Pressure: ≤0.6 MPa Speed: ≤2.5 m/sec Moving ring: Carbon / SIC Fixed ring: SIC. Bellows: NBR / EPDM / VITON. Spring: SS316. Metal parts: SS316.
Characteristics
| Shaft diameter | 90 |
| Producer | BTS Engineering |
| Stationary and rotating face | CAR/SIC |
| Material of metal part | AISI 304 stainless steel |
| Pressure | 0,6 MPa |
| Rotation velocity | 2.5 м/сек |
| Operating temperature | -20°C +180°C |
| Seal type | R-MS |
| Rubber type | EPDM |
| Analogue for | Anga MS |
| Gross weight, kg | 1.6 |
| Length of transport packing, cm | 13,5 |
| Width of transport packing, cm | 13,5 |
| Height of transport packing, cm | 12 |
