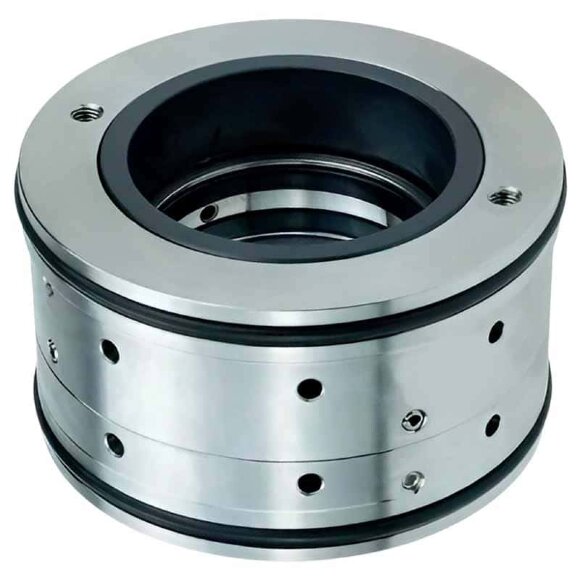

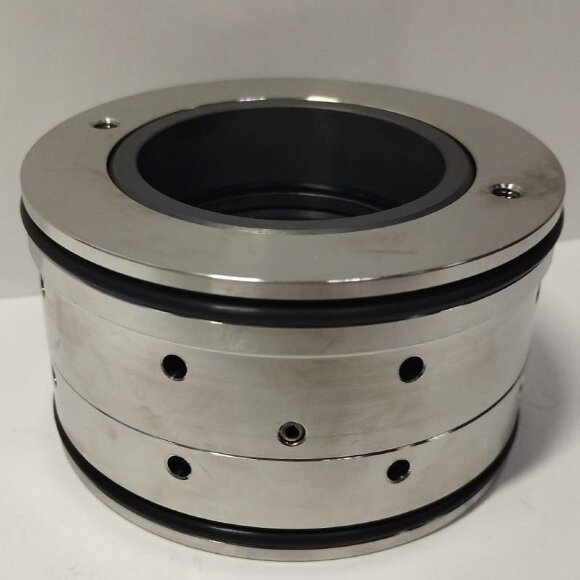

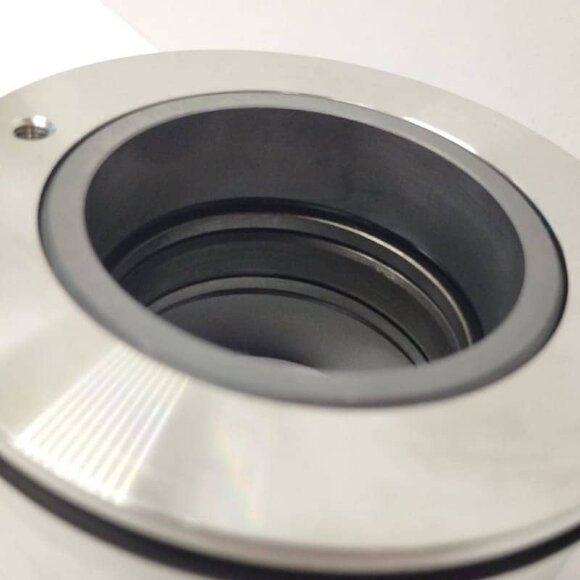

Mechanical seal EMU R-TSWE 30, SIC/SIC/SIC/SIC, VITON, 304
$-18
Documentation
Download instructions, catalog for Mechanical seal EMU R-TSWE 30, SIC/SIC/SIC/SIC, VITON, 304
Overview
Cartridge double seal R-TSWE for WILO EMU pump Analog: Vulcan Type 1640, AESSEAL SOEC / SOECU / SOE Temperature: -30 ℃ + 200 ℃ Pressure: ≤1.5 MPa Speed: ≤20 m/sec
Characteristics
| Outer diameter of the fixed ring, mm | 65 |
| Shaft diameter | 30 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/SIC/SIC |
| Material of metal part | AISI 304 stainless steel |
| Rotation velocity | 20 m/s |
| Pressure | 1.5 MPa |
| Operating temperature | -30°C +200°C |
| Seal type | R-TSWE |
| Rubber type | VITON |
| Application | WILO EMU |
| Analogue for | AESSEAL SOECU, AESSEAL SOEC, AESSEAL SOE, Vulcan 1640 |
| Gross weight, kg | 0.3 |
| Length of transport packing, cm | 5,5 |
| Width of transport packing, cm | 5,5 |
| Height of transport packing, cm | 5 |
